СКУ: SSP1D440BDT
PH relay 40A DC thermal 3.5 32V-1 150V
-
Brand
Schneider Electric
-
Number of phases
1
-
Voltage type for actuating
EV000509
-
Modular version
FALSE
-
Switching at zero-crossing
FALSE
-
Operating voltage
1
-
Rated control supply voltage Us at DC
3.5
-
Rated operation current Ie at AC-53a
40
-
Rated operation current Ie at AC-51
40
-
Rated operation current Ie at AC-53b
40
-
Rated operation current Ie at AC-1
40
-
Rated operation current Ie at AC-3
40

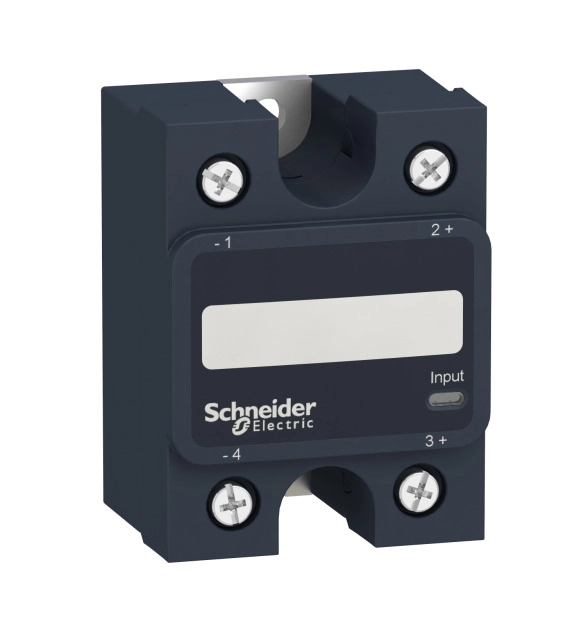

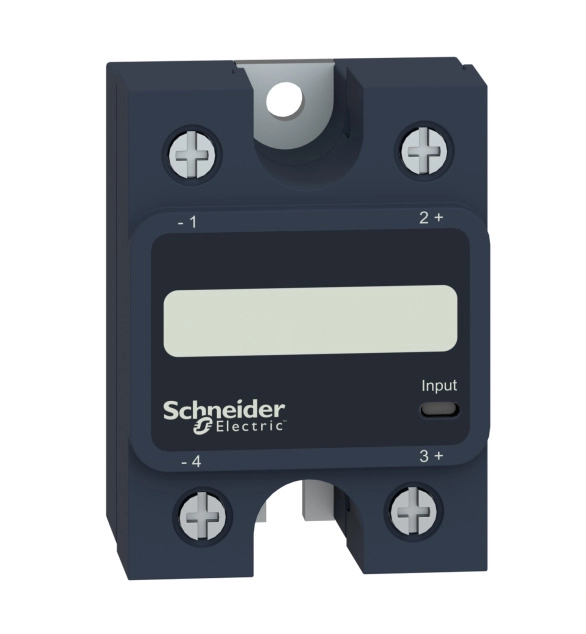

This Harmony SSP solid state panel mount single-phase relay is rated 40A, is controlled with a 3.5V to 32V DC input, has a rated load voltage of 1V to 150V DC with DC switching. It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events. It also has a test button for easy debugging, testing and commissioning. It is also silent and reliable thanks to the absence of moving contacts.
