СКУ: ABE7R16S111
Основа за реле EM W5 16O 1C C/8 ABE7R16S111
-
Brand
Schneider Electric
-
Transparent
FALSE
-
Colour
EV000270
-
Mounting method
EV005503
-
Type of electrical connection 1
EV000415
-
Closing plate required
FALSE
-
Material insulation body
EV000403
-
Halogen free
FALSE
-
Operating temperature
-5
-
Inflammability class of insulation material according to with UL94
EV000154
-
Rated voltage
24
-
Explosion-tested version 'Ex e'
FALSE
-
Number of poles
16
-
Type of electrical connection 2
EV000414
-
Number of clamp positions per pole
2
-
Drill hole distance centrically
10
-
Connectable conductor cross section solid-core
0.324
-
Rated current In
0.09

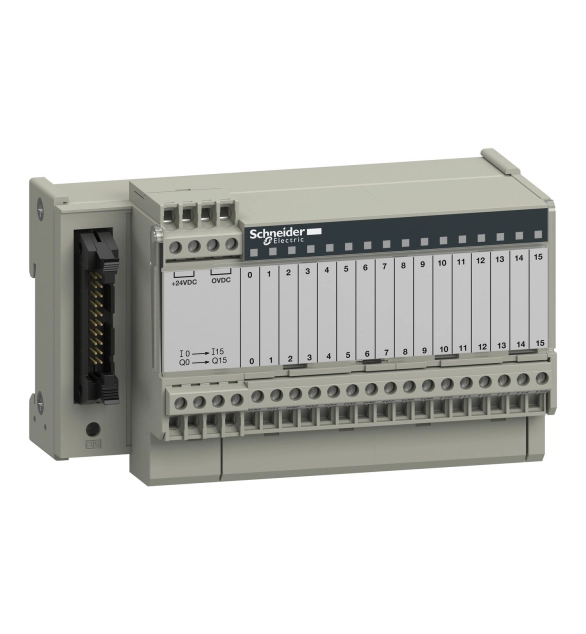

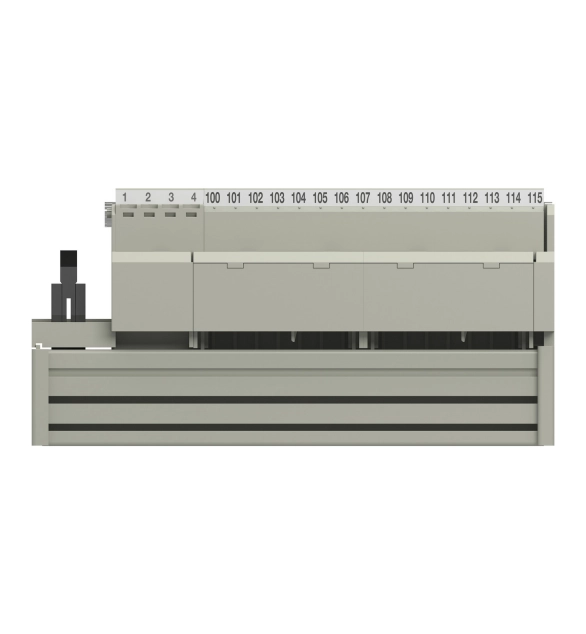

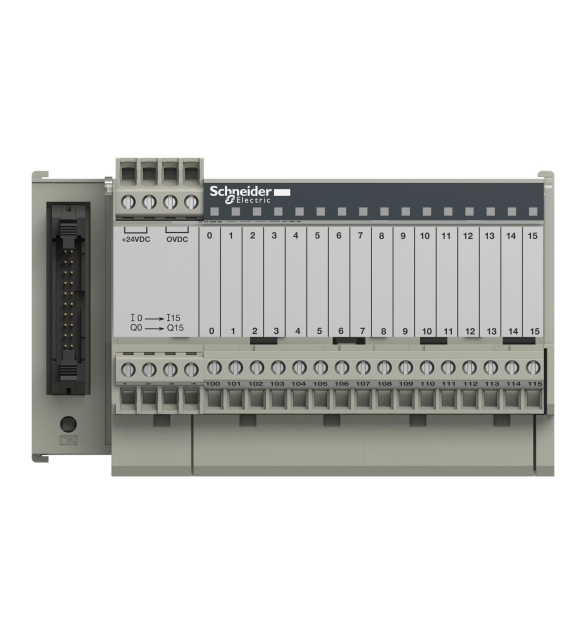

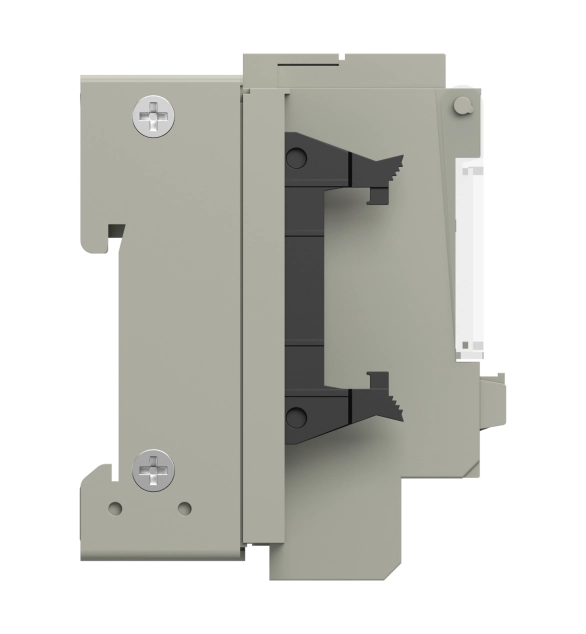

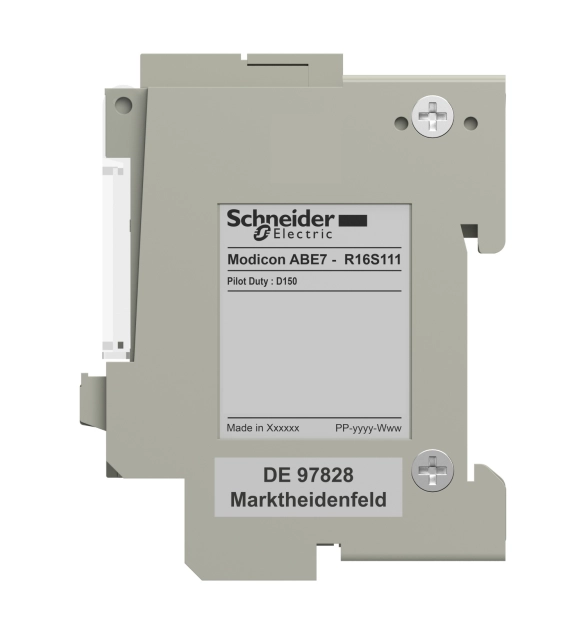

This product is part of the Modicon ABE7 range, an offer of connection sub bases for Telefast pre-wired system. This soldered electromechanical relay sub base offers 16 channels with 1 terminal per channel. The input sub base offers a rated supply voltage of 24V DC for PLC end and NO contact for pre actuator end. It is furnished with removable terminal block. It is an IP2x rated product. It measures 125mm (width) x 58mm (depth) x 77mm (height)and it weighs 0.405kg. It is suitable for all types of industrial applications. This product is certified by DNV, UL, CSA, GL, BV, LROS and EAC. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalize wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
