СКУ: A9A26947
Напрежение на отваряне - iMX+OF - със Защита - 48 VAC
-
Brand
Schneider Electric
-
Width in number of modular spacings
1
-
Rated switch current
6
-
With auto test for earth leakage function
FALSE
-
Suitable for max. number of poles main contact unit (total)
4
-
Number of contacts as change-over contact
1
-
Voltage type for actuating
EV000509
-
Device fitting
EV000646
-
Installed at the factory
FALSE
-
Rated voltage
48
-
Suitable for max. current main contact unit
63
-
Additional equipment
EV009614
-
Number of contacts as normally open contact
-
Number of contacts as normally closed contact
-
Number of fault-signal switches

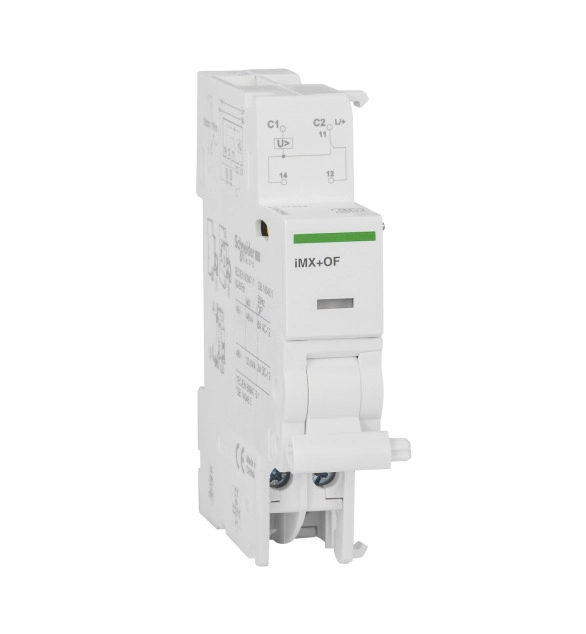

This Acti9 iMX+OF electrical tripping auxiliary for is a shunt trip release device with open/close auxiliary contact. It is compatible with Acti9 ranges. This device includes an open/close contact OF to indicated the position of the associated device. The width in 9mm pitches is 2. The Uc control circuit voltage is 48VAC or 48VDC. It can be mounted on a DIN rail for modular installation. The product color is white (RAL9003). The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standards.
