СКУ: MZ140-24T

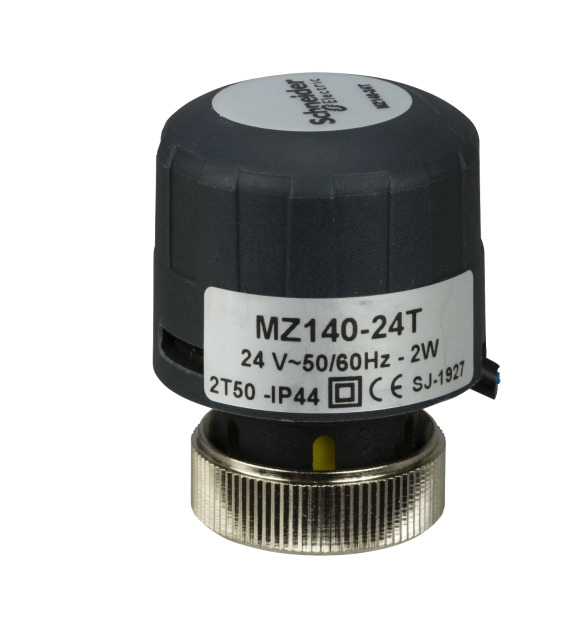

MZ140 Thermal Zone Valve Actuator, 2-Position, Normally Closed, 24 Vac, 140 N, IP44
-
Brand
Schneider Electric
-
Model
EV000154
-
Colour
EV000206
-
Degree of protection (IP)
EV006418
-
Width
98
-
Supply voltage
EV021410
-
Self-adjusting travel length
FALSE
-
Automatic travel recognition
FALSE
-
Suitable for manual operation
FALSE
-
Auxiliary contacts
FALSE
-
Control signal
EV021430
-
Connection to stop valve
EV022025
-
Cable length
1.5
-
Diameter
42
-
With position indicator
FALSE
-
Height
53
-
Length
130
-
Operating time
350
-
With end contacts
FALSE
-
Ambient temperature
2
-
Protected against overvoltage
FALSE
-
Nominal power
2
-
First open
FALSE
-
Stroke length
4
-
Function
EV020337
MZ140-T is a thermoelectric actuator designed to provide two position on/off control together with VZ*08* zone Valves. The Actuator without power is retracted to ensure the zone valve is in a closed state. With power, the actuator actuator stem is extended to open the valve. The compact construction provides a small footprint. Power Supply: 24 Vac. Stem force 140N. Protection class IP44 for vertical mounting. Max. stroke 4 mm. EMC 24/18/CE, LVD 26/95/CE.
