СКУ: BSH1401T22F2A

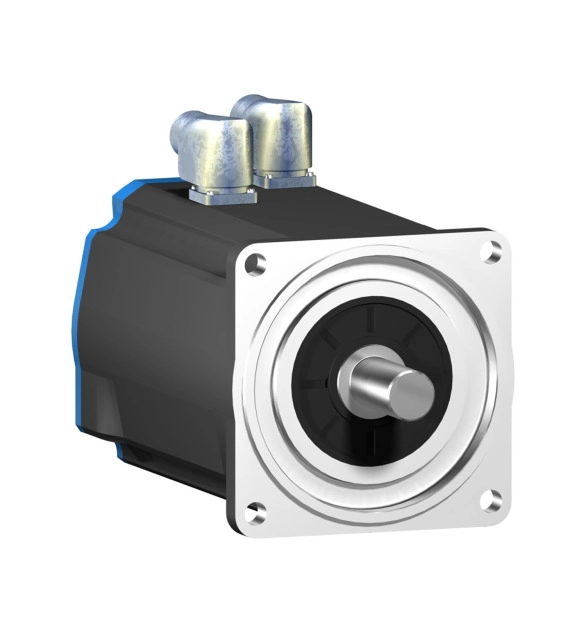

Серво двигател BSH - 11.1 N.m - 2500 rpm - без шпонка - със спирачка - IP65
-
Brand
Schneider Electric
-
Number of phases
3
-
Voltage type
EV000509
-
Rated voltage
230
-
Degree of protection (IP)
EV000154
-
Rated frequency
50
-
Material housing
EV000154
-
Number of poles
-
Operating temperature
-
Construction type
EV000154
-
Bearing
EV000154
-
Model
EV006582
-
Motor efficiency class
EV000154
-
Overload capability
FALSE
-
Cooling method
EV000154
-
Shaft end type
EV000154
-
Vacuum pressure impregnation (VPI)
EV000154
-
With positive temperature coefficient resistor (PTC)
FALSE
-
With resistance temperature detector (RTD)
FALSE
-
Intrinsic safety (IS)
EV000494
-
Suitable for frequency control
FALSE
-
With anti-condensation
FALSE
-
Duty cycle
EV000154
-
Starting torque ratio
-
Breakdown torque ratio
-
Starting current ratio
-
Insulation class according to IEC
EV000154
-
Nominal torque
14.9
This motor belongs to Lexium 05, a range of servo drives and associated motors. This BSH servo motor has a continuous stall torque of 11Nm and works at a maximum supply voltage of 480V. BSH servo motors use salient-pole winding technology for a more compact design and higher power density than conventional motors. It has a maximum mechanical speed of 4000 rpm and its protection level is IP65. It is also RoHS compliant. This product is certified by GOST-R, C-Tick, cULus, and CSA. It is compatible with Lexium 05, Lexium 15 and Lexium 32 servo drives. It is sold in a 1-piece package. It installs on a panel with four holes, with a diameter of 11mm.
