Моторна защита 0,4-0,63А GZ1E04 | Spark & Co
  • 3D
|

СКУ: GZ1E04

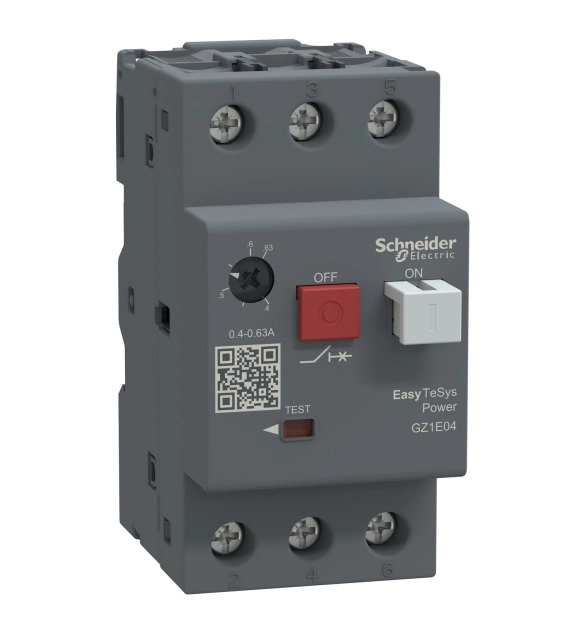

Моторна защита 0,4-0,63А GZ1E04

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Number of poles
    3
  • Rated operating voltage
    690
  • Degree of protection (IP)
    EV006405
  • Type of control element
    EV000554
  • With integrated under voltage release
    FALSE
  • Depth
    78
  • With integrated auxiliary switch
    FALSE
  • Phase failure sensitive
    TRUE
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    100
  • Height
    89
  • Device construction
    EV009311
  • Switch off technique
    EV009462
  • With thermal protection
    TRUE
  • Width
    44.5
  • Rated permanent current Iu
    0.63
  • Adjustment range undelayed short-circuit release
    8
  • Overload release current setting
    0.4

GZ1E are 3 pole (3P) thermal-magnetic circuit breakers for motor protection, conforming to standards IEC 60947-2 and IEC 60947-4-1, with a thermal setting range 0.40...0.63A. It provides IP41 in GV2MC01 enclosure and IP55 in GV2MC02 enclosure. It procures standard reliability and 0.1M cycles electrical/mechanical durability. These circuit breakers are designed for connection by screw clamp terminals. Multi-standards certified (IEC, CCC, EAC) and Environmental compliant (RoHs/Reach).
