СКУ: LUFN02
Моторен пускател TESYS U - допълнителен
-
Brand
Schneider Electric
-
Number of contacts as normally open contact
1
-
Type of electric connection
EV000415
-
Model
EV003966
-
Number of contacts as normally closed contact
1
-
Mounting method
EV000154
-
Rated operation current Ie at AC-15, 230 V
5
-
Number of contacts as change-over contact
-
Number of fault-signal switches

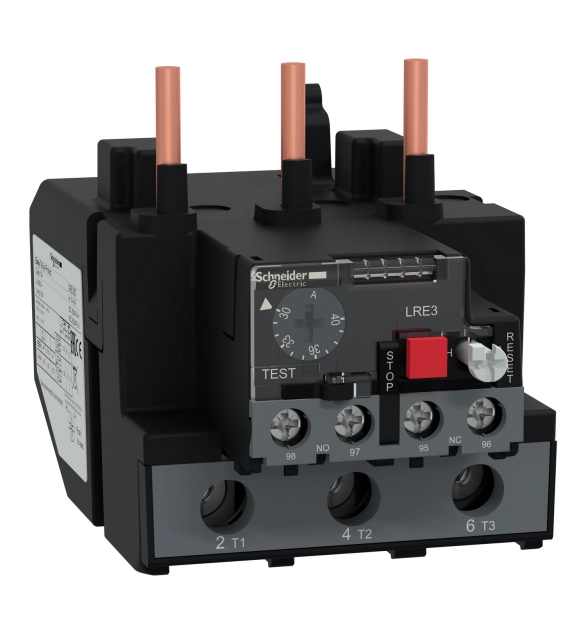

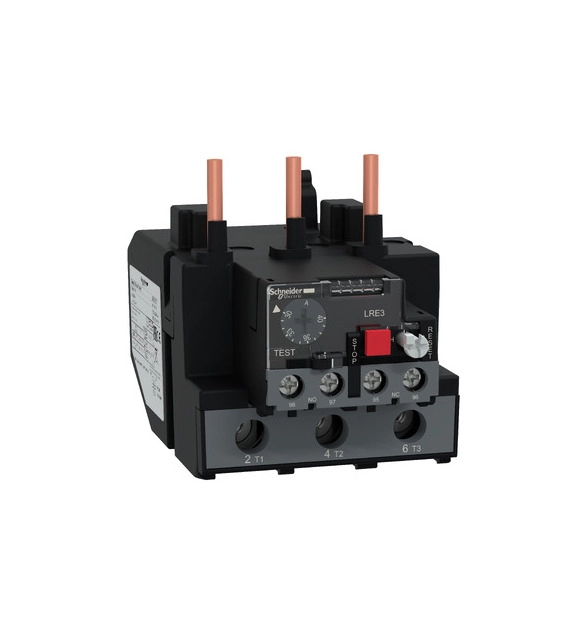

TeSys LRD thermal overload relay, 80A/690V, thermal setting range 62-80A, tripping class 10A, for protection of 3-phase motors 37kW/400V. Differential device with phase failure (loss). It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by EverLink BTR screw terminals , it connects directly to the bottom terminals of 3-pole contactors LC1D40A-D80A. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD96560 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
