СКУ: GZ1LE16

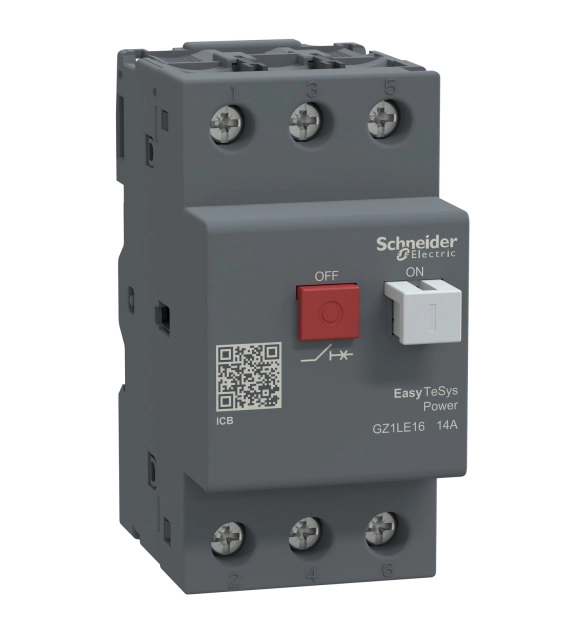

Моторен прекъсвач,Easy TeSys Power,GZ1LE,3P,бутон,14A,магн. изкл. у-во
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Number of poles
3
-
Rated operating voltage
690
-
Rated operation power at AC-3, 400 V
5.5
-
Degree of protection (IP)
EV006405
-
Type of control element
EV000554
-
With integrated under voltage release
FALSE
-
Depth
78
-
With integrated auxiliary switch
FALSE
-
Switch off technique
EV006116
-
Height
89
-
With thermal protection
FALSE
-
Device construction
EV009311
-
Rated permanent current Iu
14
-
Width
44.5
-
Adjustment range undelayed short-circuit release
170
-
Rated short-circuit breaking capacity lcu at 400 V, AC
10
-
Phase failure sensitive
FALSE
GZ1LE are 3 poles (3P) magnetic circuit breakers specifically designed for motor protection, conforming to standards IEC 60947-2 and IEC 60947-4-1. Magnetic protection rating is 14A with magnetic trip unit. It provides IP41 in GV2MC01 enclosure and IP55 in GV2MC02 enclosure. It procures standard reliability and 0.1M cycles electrical/mechanical durability. These circuit breakers are designed for connection by screw clamp terminals. Multi-standards certified (IEC, CCC, EAC) and Environmental compliant (RoHs/Reach).
