СКУ: GZ1E14
Моторен прекъсвач 6-10 GZ1E14
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Number of poles
3
-
Rated operating voltage
690
-
Rated operation power at AC-3, 400 V
4
-
Degree of protection (IP)
EV006405
-
Type of control element
EV000554
-
With integrated under voltage release
FALSE
-
Depth
78
-
With integrated auxiliary switch
FALSE
-
Phase failure sensitive
TRUE
-
Rated short-circuit breaking capacity lcu at 400 V, AC
100
-
Height
89
-
Device construction
EV009311
-
Rated permanent current Iu
10
-
Rated operation power at AC-3, 230 V
2.2
-
Switch off technique
EV009462
-
With thermal protection
TRUE
-
Width
44.5
-
Overload release current setting
6
-
Adjustment range undelayed short-circuit release
138

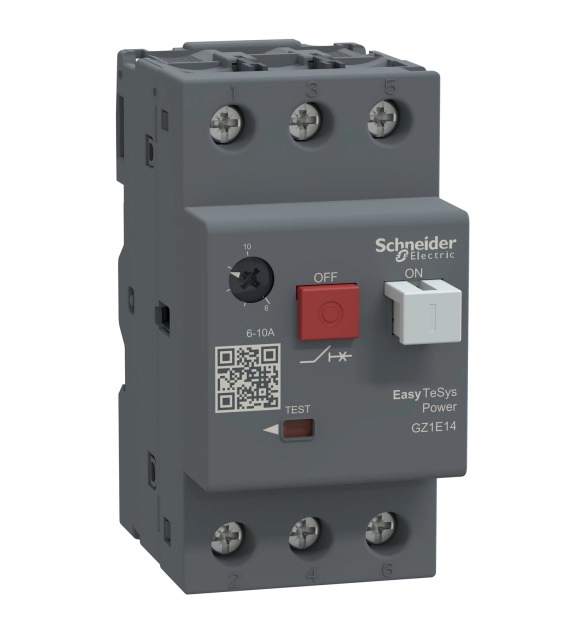

GZ1E are 3 pole (3P) thermal-magnetic circuit breakers for motor protection, conforming to standards IEC 60947-2 and IEC 60947-4-1, with a thermal setting range 6...10A. It provides IP41 in GV2MC01 enclosure and IP55 in GV2MC02 enclosure. It procures standard reliability and 0.1M cycles electrical/mechanical durability. These circuit breakers are designed for connection by screw clamp terminals. Multi-standards certified (IEC, CCC, EAC) and Environmental compliant (RoHs/Reach).
