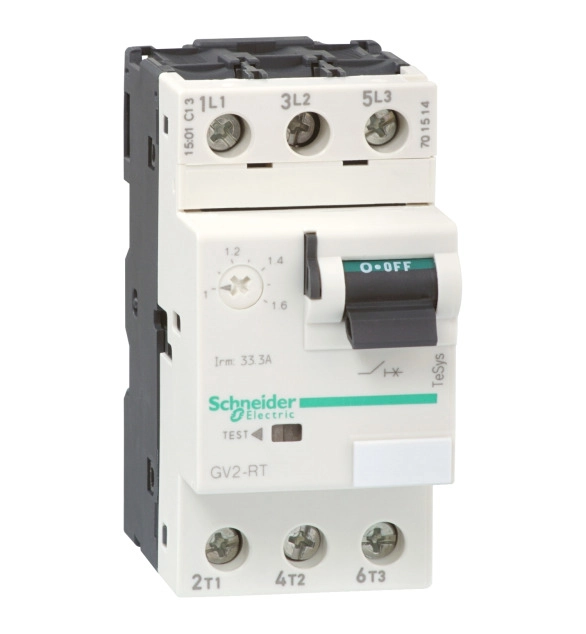

СКУ: GV2RT21
Моторен прекъсвач 17-23 20XIN
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Number of poles
3
-
Rated operating voltage
690
-
Rated operation power at AC-3, 400 V
11
-
Degree of protection (IP)
EV006405
-
With integrated under voltage release
FALSE
-
Width
45
-
With integrated auxiliary switch
FALSE
-
Phase failure sensitive
TRUE
-
Height
89
-
Device construction
EV009311
-
Switch off technique
EV009462
-
With thermal protection
TRUE
-
Rated operation power at AC-3, 230 V
5.5
-
Overload release current setting
17
-
Rated permanent current Iu
23
-
Rated short-circuit breaking capacity lcu at 400 V, AC
15
-
Type of control element
EV001252
-
Depth
78.5
-
Adjustment range undelayed short-circuit release
400
TeSys GV motor circuit breaker, 3 poles (3P), 23A/690V, for high starting current peak motor applications 9-11kW/400V. It provides a thermal-magnetic protection with a thermal setting range 17-23A, a magnetic tripping level at 17xIn, high breaking capacity Icu 15kA/400V. Connection by screw clamp terminals. Start-stop control by toggle guaranteed for 100 000 cycles AC-3. It can be used for protection of 3-phase transformer applications. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
