СКУ: LTMR08MFM

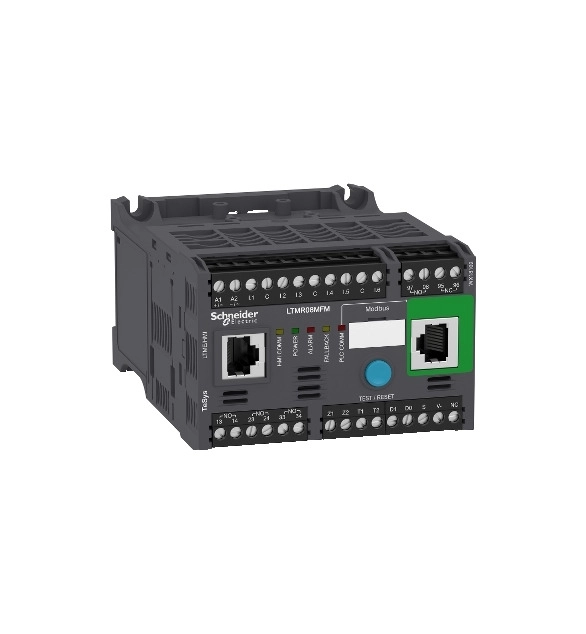

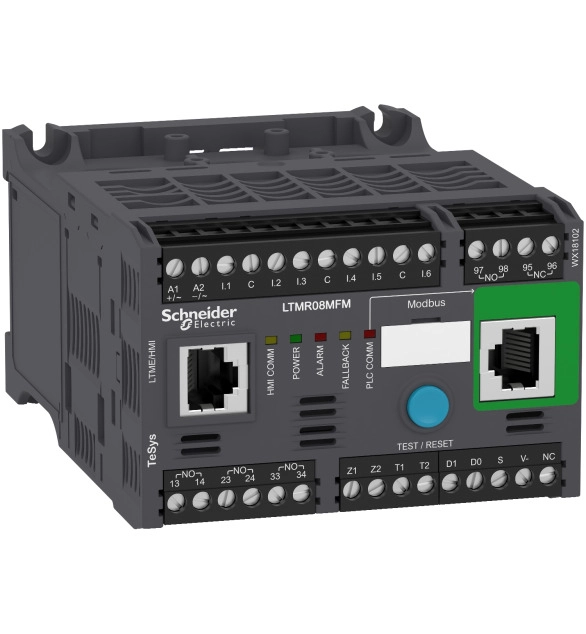

Моторен контролер LTMR TeSys T - 100..240 V AC 8 A за Modbus
-
Brand
Schneider Electric
-
Colour
EV000206
-
Suitable for power circuit breaker
TRUE
-
With extension shaft
FALSE
-
Suitable for emergency stop
FALSE
-
Suitable for switch disconnector
TRUE
-
With restart blockage
FALSE
-
Padlock locking
TRUE
-
With key lock
FALSE
TeSys LR97D electronic overcurrent relay, 1.5A/690V, to be supplied with 24V AC/DC, for protection of motors with a rated current 0.3-1.3A. It provides 3 dials to adjust the protection, LOAD (0.3-1.5A) for the overcurrent level, O-TIME (0.3-10sec) for the acceptable duration of the overcurrent, D-TIME (0.5-30sec) for the starting duration. In addition, the device trips when the current is higher than 3 x LOAD during more than 0.5sec in steady state and if there is a missing phase during more than 3sec. The settings include selectors for 1-phase/3-phase motors and manual/automatic reset, and the device has a reset button, a test/stop button, 2 LED indicators (Run/Trip), 2 auxiliary contacts 1NO/NC for fault signalling. Settings can be locked by sealing the transparent cover. For direct attachement to the bottom terminals of a 3-pole contactor LC1D09-D38, with screw clamp terminals on bottom, the separate mounting from the contactor is possible using the terminal block LAD7B106 (to be ordered separately). Multi-standards certified (IEC, UL, CSA, CCC, EAC), compliant RoHs/Reach.
