СКУ: GV3P736

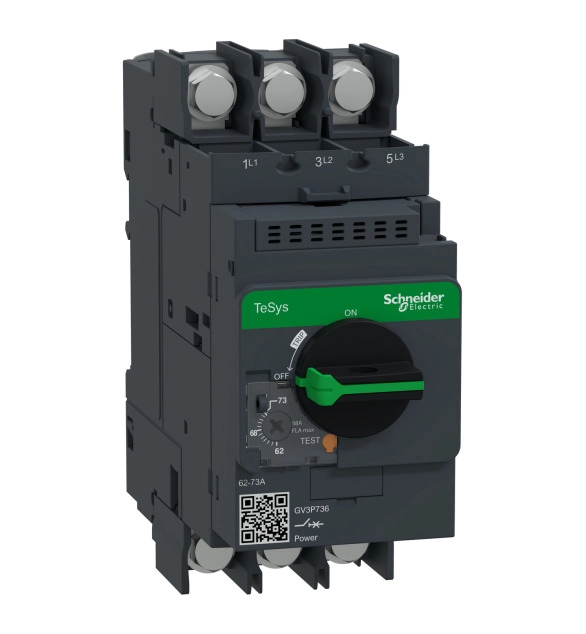

Motor прекъсвач, TeSys Deca, 3P, 62 to 73A, thermal magnetic, lugs terminals
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Number of poles
3
-
Rated operation power at AC-3, 400 V
37
-
Degree of protection (IP)
EV006405
-
Type of control element
EV000092
-
With integrated under voltage release
FALSE
-
Width
55
-
With integrated auxiliary switch
FALSE
-
Phase failure sensitive
TRUE
-
Device construction
EV009311
-
Rated short-circuit breaking capacity lcu at 400 V, AC
50
-
Switch off technique
EV009462
-
With thermal protection
TRUE
-
Depth
136
-
Adjustment range undelayed short-circuit release
1120
-
Height
132
-
Overload release current setting
62
-
Rated permanent current Iu
73
-
Rated operating voltage
230
-
Rated operation power at AC-3, 230 V
18.5
TeSys GV motor circuit breaker, 3 poles (3P), 73A/690V, for 3-phase motor applications 37kW@400V. It provides a thermal-magnetic protection with a thermal setting range 62-73A, magnetic tripping at 15xIn, high breaking capacity Icu 50kA@400V. Connection by bars or lugs. Start-stop control by rotary knob guaranteed for 20 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).
