Мот. защита 3P 2.5A GV2LE07 | Spark & Co
  • 3D
|

СКУ: GV2LE07

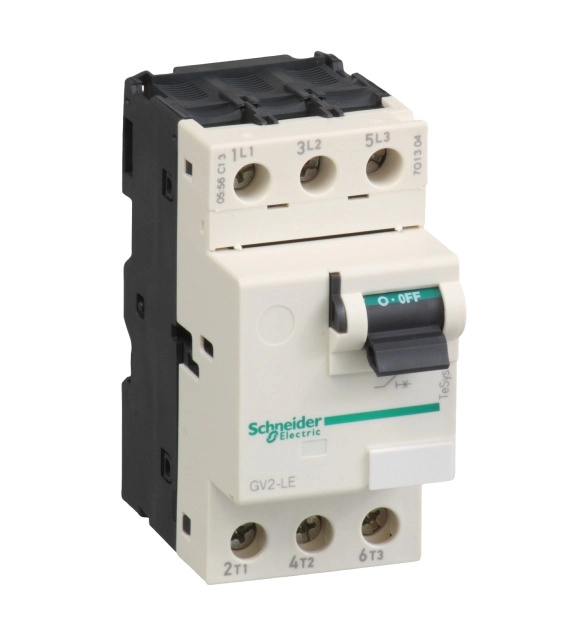

Мот. защита 3P 2.5A GV2LE07

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Number of poles
    3
  • Rated operating voltage
    690
  • Degree of protection (IP)
    EV006405
  • With integrated under voltage release
    FALSE
  • Width
    45
  • With integrated auxiliary switch
    FALSE
  • Switch off technique
    EV006116
  • Phase failure sensitive
    TRUE
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    100
  • Height
    89
  • With thermal protection
    FALSE
  • Device construction
    EV009311
  • Rated permanent current Iu
    2.5
  • Rated operation power at AC-3, 230 V
    0.37
  • Adjustment range undelayed short-circuit release
    33.5
  • Type of control element
    EV001252
  • Depth
    78.5
  • Rated operation power at AC-3, 400 V
    1.1

TeSys GV motor circuit breaker, 3 poles (3P), 2.5A/690V, for 3-phase motor applications 0.75kW/400V. It provides a magnetic protection with a tripping level at 13xIn, high breaking capacity Icu 100kA/400V. Connection by screw clamp terminals. Start-stop control by toggle guaranteed for 100 000 cycles AC-3. To complete motor protection, use in association with a thermal overload relay LRD07 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
