СКУ: NSYCSHB2010
Модулна рамка дв. смесена 2000х1000
-
Brand
Schneider Electric
-
Model
EV000154
-
RAL-number
7035
-
Colour
EV000270
-
Material
EV000914
-
Suitable for enclosure building height
2000
-
Depth
100
-
Width
1000
-
Height
2000
-
Suitable for enclosure building width
1000

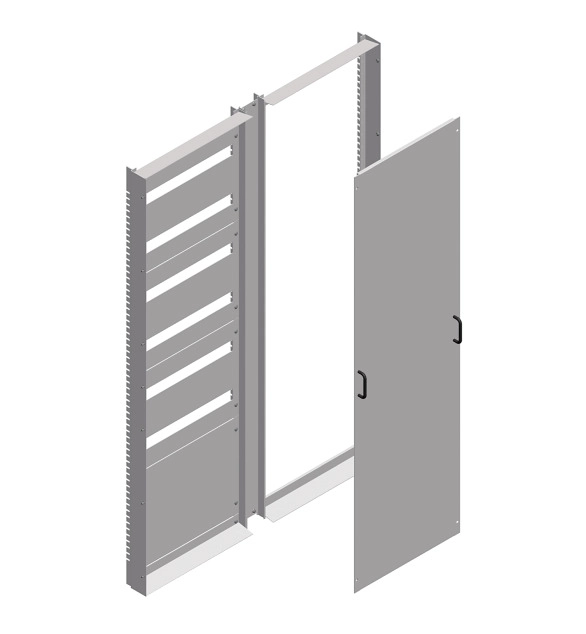

This is a chassis-coupling set with zone for busbars suitable for PanelSeT SFN, PanelSeT SF and PanelSeT SM electrical enclosures. It is designed to be mounted on enclosure´s widths of 1000 and 1200mm. It is made of steel. The color is grey RAL7035. Anti-corrosion protection is ensured by an epoxy-polyester zinc coated coating. The nominal width and height are 1000mm and 2000mm respectively. The real width, height and depth are 902mm, 1905mm and 100mm respectively. The maximun number of 18mm modules is 288. The kit contains 1 single-chassis coupling set, 1 intermediate central upright, 1 busbar blanking cover plate and fixing elements.
