СКУ: HMISTM6BOX
Модулна HMI кутия, Harmony ST6, специфична HMI програма
-
Brand
Schneider Electric
-
Supporting protocol for SERCOS
FALSE
-
Radio standard GPRS
FALSE
-
Radio standard GSM
FALSE
-
Radio standard UMTS
FALSE
-
Supporting protocol for Foundation Fieldbus
FALSE
-
Supporting protocol for SafetyBUS p
FALSE
-
Voltage type of supply voltage
EV000461
-
Supporting protocol for PROFINET CBA
FALSE
-
Supporting protocol for PROFIsafe
FALSE
-
Supporting protocol for ASI
FALSE
-
Radio standard Bluetooth
FALSE
-
Supporting protocol for PROFIBUS
FALSE
-
Radio standard Wi-Fi 802.11
FALSE
-
Supporting protocol for KNX
FALSE
-
Supporting protocol for CAN
FALSE
-
Supporting protocol for DeviceNet
FALSE
-
Supporting protocol for Data-Highway
FALSE
-
Supply voltage DC
24
-
Supporting protocol for LON
FALSE
-
Supporting protocol for SUCONET
FALSE
-
Degree of protection (IP), front side
EV006423
-
Supporting protocol for EtherNet/IP
TRUE
-
Supporting protocol for Modbus
TRUE
-
Number of HW-interfaces USB
2
-
Type of display
EV005759
-
With colour display
TRUE
-
Number of HW-interfaces RS-232
1
-
Number of HW-interfaces RS-422
1
-
Number of HW-interfaces serial TTY
-
Number of HW-interfaces industrial Ethernet

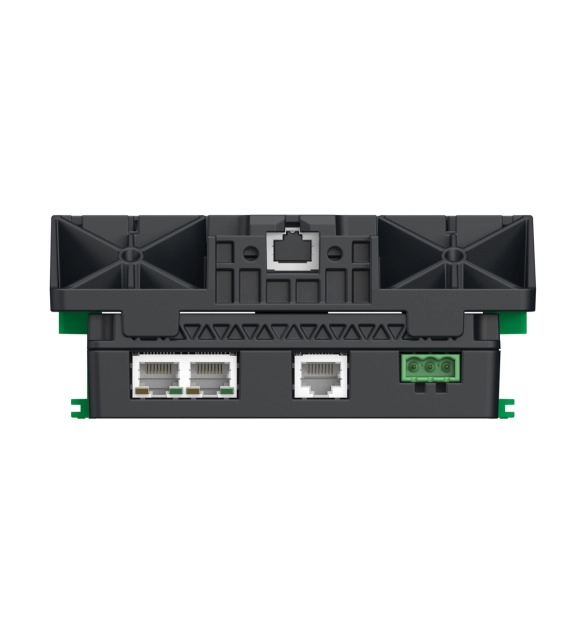

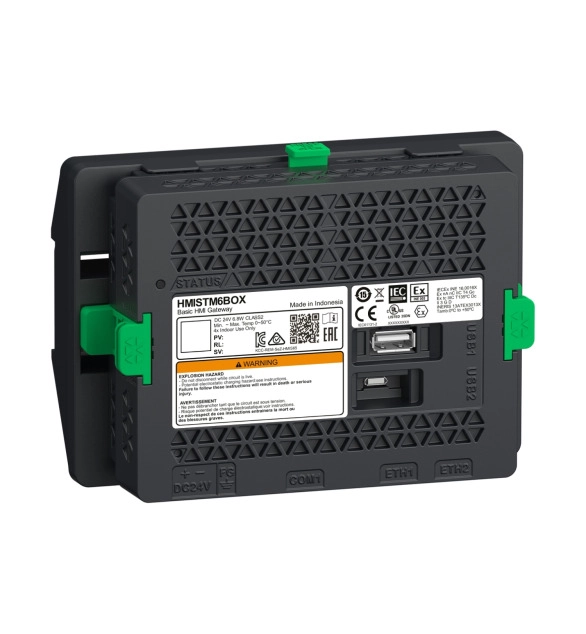

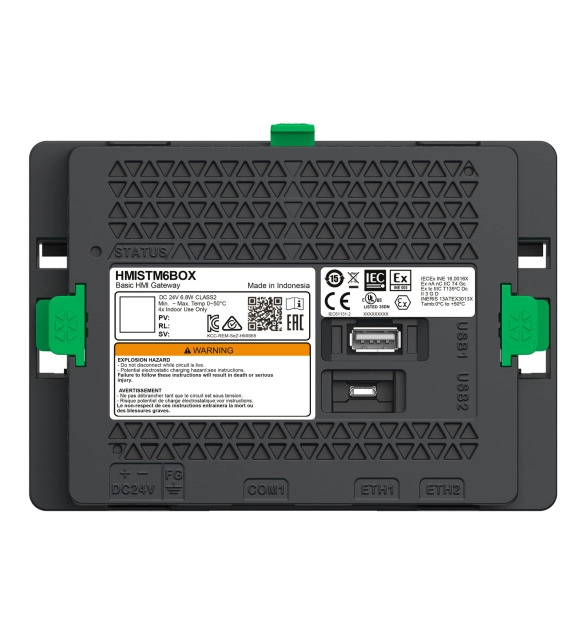

This Basic modular HMI Gateway Box belongs to the Schneider Electric Harmony ST6 range. This HMISTM6 Modular BOX is a rear module which runs on 800MHz ARM Cortex-A8 CPU Harmony operating system with an input supply voltage of 24Vdc. It has a 1 GB device memory, 128 MB user data memory, and 512 KB backup memory. With Web viewer feature of EcoStruxure Operator Terminal Expert, the Gateway Modular Box becomes a Faceless HMI. This HMISTM6BOX supports 2x Ethernet port, 1x COM1 (RS-232C or RS-485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 150.49mm (width) x 109.97mm (height) x 63.3mm (depth) and weighs 0.456Kg. This is intended for industries like packaging, food & beverage, textile, HVAC equipment, and compressors, and also for end users looking for maintenance of their Web devices. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like CSA, CE, China RoHS, KC, REACH, ATEX Zone2/22, Marine. The HMIST6 rear module when mounted on a DIN Rail adapter provides IP20 protection. This range is designed to meet the needs of simple machine operators for good visualization, connectivity, cybersecurity with EcoStruxure Secure Connect Advisor, and cost effective equipment. The HMISTM6 Faceless HMI can be used for applications that doesn't need an operator screen full time.
