СКУ: 19017

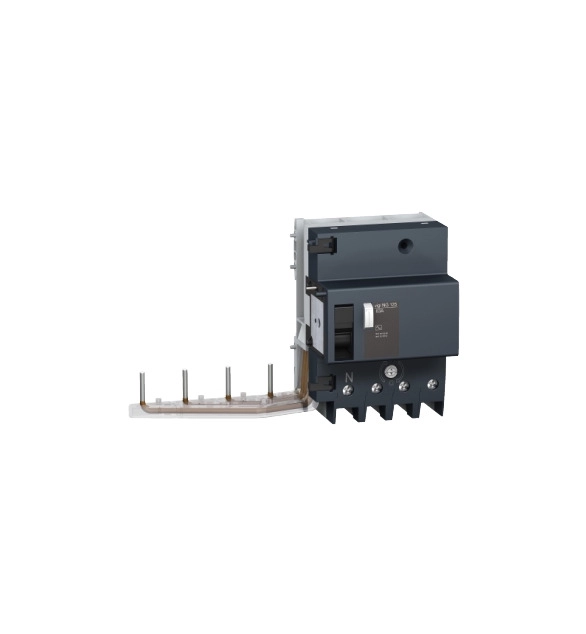

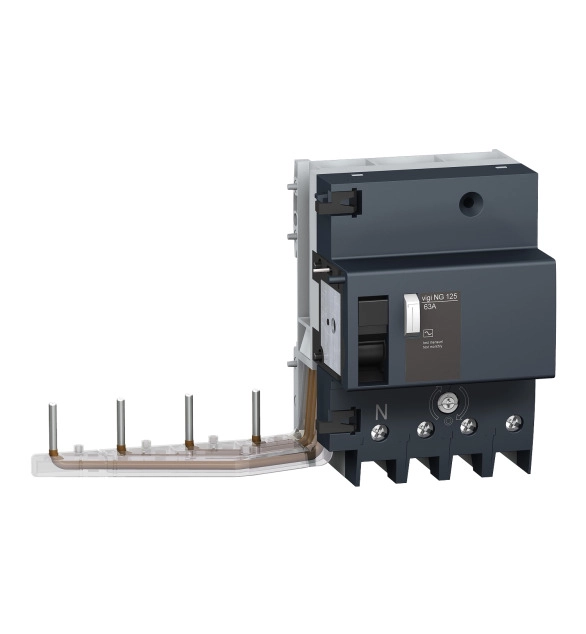

Модулна Дефектнотокова защита Vigi NG125 4P - 63A - 30mA
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Number of poles
4
-
Rated insulation voltage Ui
690
-
Rated impulse withstand voltage Uimp
8
-
Connectable conductor cross section solid-core
1.5
-
Connectable conductor cross section multi-wired
1
-
Pollution degree
3
-
Nominal voltage
230
-
Max. delay time
-
Nominal current
63
-
Delay adjustable
FALSE
-
Frequency
EV008015
-
Surge current capacity
3
-
Rated fault current adjustable
FALSE
-
With interlocking device
TRUE
-
Anti-nuisance tripping version
FALSE
-
Leakage current type
EV000896
-
Ambient temperature during operating
25
-
Rated fault current
0.03
This Acti9 NG125 is a switch disconnector. It is a 3P+N switch disconnector with 100A rated current at 500VAC. This switch disconnector is used for control (opening and closing of circuits under load). This product is also used for disconnection of on-load electrical circuits already protected against overload and short-circuits. It has a position contact indication suitable for industrial isolation according to IEC 60947-3 standard. Electrical endurance goes up to 1500 cycles. Mechanical endurance goes up to 20000 cycles. The Ui rated insulation voltage is 690VAC. It has a Uimp rated impulse withstand voltage of 8kV. The operating frequency is 50Hz or 60Hz. It can be mounted on a 35 mm symmetrical DIN rail for modular installation. Its width is 12 pitches of 9mm. The dimensions are (W) 108mm x (H) 103mm x (D) 81mm. The weight is 0.96kg. The color is black (RAL9005). According to IEC 60529 standard, the degree of protection is IP20 or IP40 in modular enclosure. The operating temperature is -10°C to 60°C. The storage temperature is -40°C to 70°C. This product complies with IEC 60947-3 standard.
