СКУ: A9C21834
Модулен контактор ICT 25A 4NO 220..240VAC 50HZ MANUALLY O
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Width in number of modular spacings
2
-
Additional equipment possible
TRUE
-
Number of contacts as normally open contact
4
-
With day/night function
FALSE
-
Built-in depth
43.5
-
Rated operation current
25
-
Utility category
7
-
Voltage type (operating voltage)
EV000460
-
Voltage type (excitation voltage)
EV000460
-
Hum-free
FALSE
-
Slider for hand switch
TRUE
-
Rated excitation voltage
220
-
Rated operating voltage
400
-
Max. load fluorescent lamp (parallel compensated)
3600
-
Max. incandescent lamp load
8550
-
Max. load fluorescent lamp
3600
-
Max. load fluorescent lamp (Duo circuit)
7200
-
Number of contacts as normally closed contact

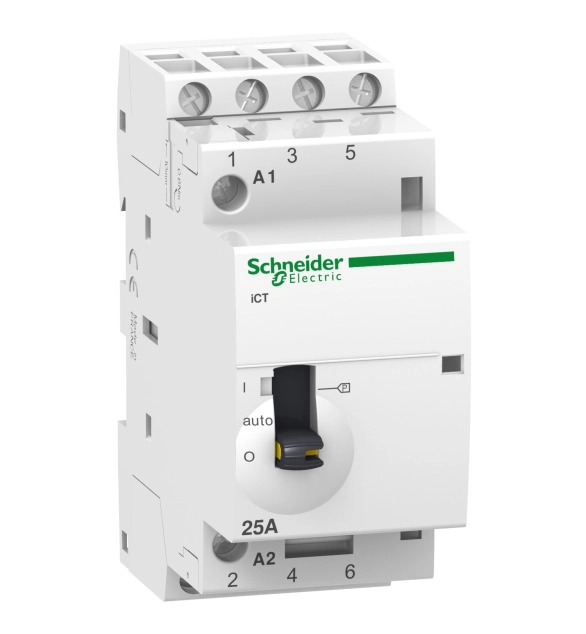

This Acti9 iCT is a modular contactor. It is a 4P remote and manual control device with 4 normally open contacts. The In rated current is 25A for AC-7a and 8.5A for AC-7b. The Ue rated operational voltage is 400VAC. The Uc control voltage is 220VAC to 240VAC. This device could be used for control circuits. It is compatible with all the Acti9 control auxiliaries, for lighting, heating & ventilation control applications. This product is compliant with IEC/EN 61095. Electrical endurance goes up to 100000 cycles for AC-7A or AC-1, 30000 cycles for AC-7C, AC-7B, AC-3, AC-5A or AC-5B. The maximum switching operations is 6 per minute. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. Pollution degree is 2. It is DIN rail mountable. Its width is 4 pitches of 9mm. The product color is white (RAL9003). The dimensions are (W) 81mm x (H) 36mm x (D) 60mm. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5°C to 60 °C. The storage temperature is from -40°C to 70°C.
