СКУ: A9V30225

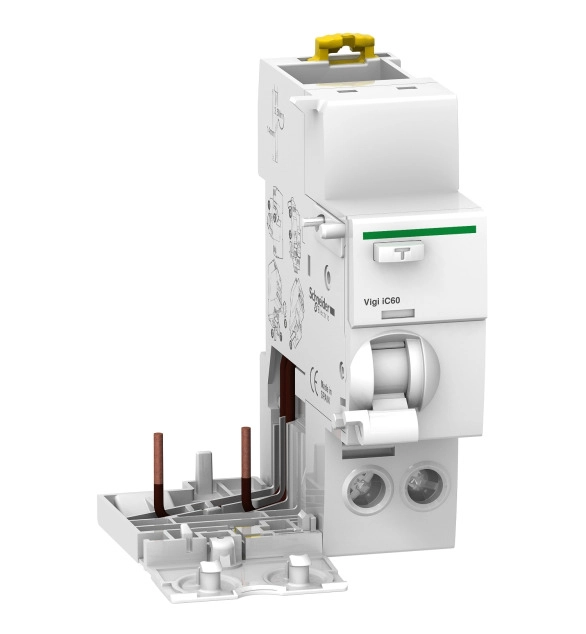

Модул Vigi iC60 - 2P - 25A - 10mA - клас SI
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Number of poles
2
-
Connectable conductor cross section multi-wired
1
-
Pollution degree
3
-
Nominal voltage
230
-
Delay adjustable
FALSE
-
Frequency
EV008015
-
Surge current capacity
3
-
Ambient temperature during operating
-25
-
Rated fault current adjustable
FALSE
-
Leakage current type
EV000896
-
Anti-nuisance tripping version
TRUE
-
Rated impulse withstand voltage Uimp
6
-
Connectable conductor cross section solid-core
1
-
Rated insulation voltage Ui
500
-
With interlocking device
FALSE
-
Rated fault current
0.01
-
Nominal current
25
-
Max. delay time
This Acti9 Vigi iC60 is a modular add-on residual current devices. It is a 2P, rated current is 25A, operating voltage is 230VAC to 240VAC according to IEC 61009-1. The earth leakage protection class is A-SI type with a sensitivity of 10mA and a voltage independent technology. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. The A-SI type provides increased immunity from electrical interference and polluted or corrosive environments. It can be combined with iC60 or Acti9 Reflex iC60, to provide protection of persons and protection of installations. This product is compliant with EN 61009-1 and IEC 61009-1 standard. The Ue rated operational voltage is 230VAC to 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The pollution degree is 3. It can be mounted on DIN rail. The width in 9mm pitches is 3. The dimensions are (W) 63mm x (H) 91mm x (D) 73.5mm. The weight is 0.165kg. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature -25°C to +60°C. The storage temperature is -40°C to +85°C.
