СКУ: MCSESM093F1CS0

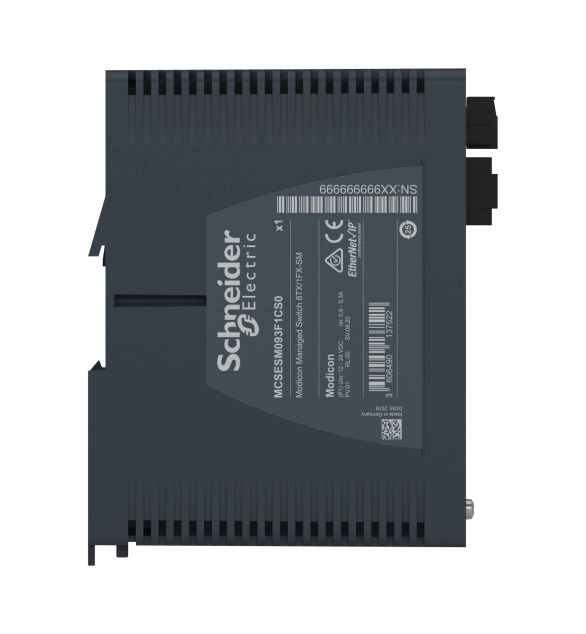

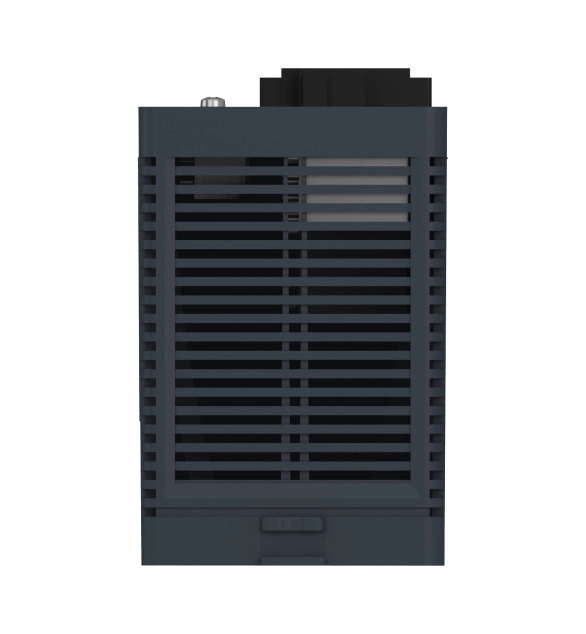

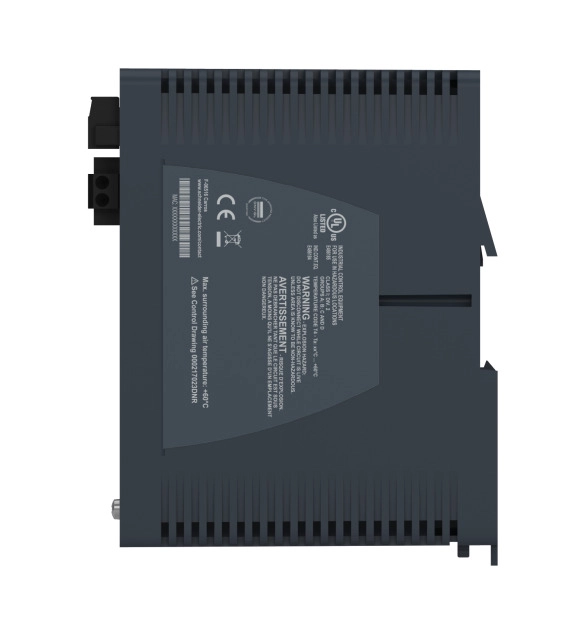

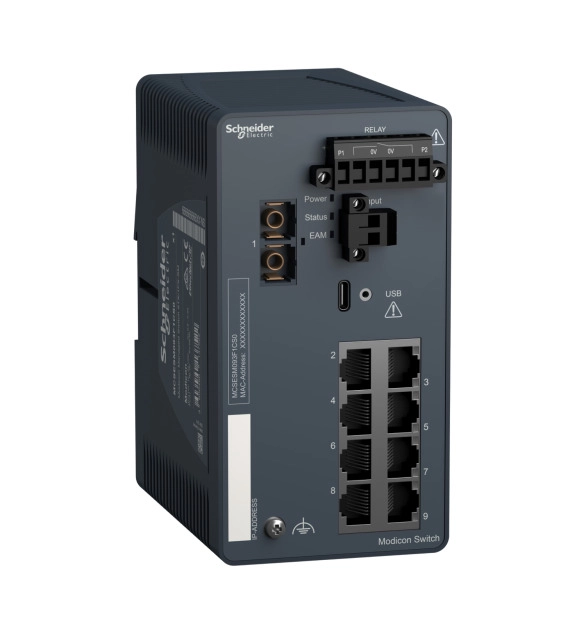

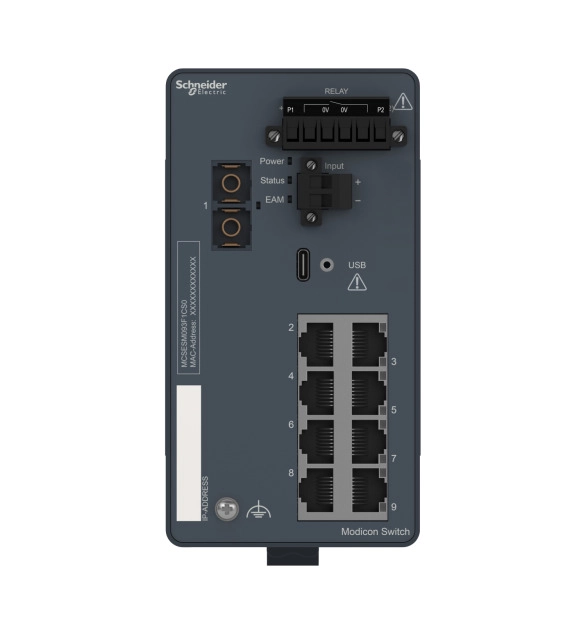

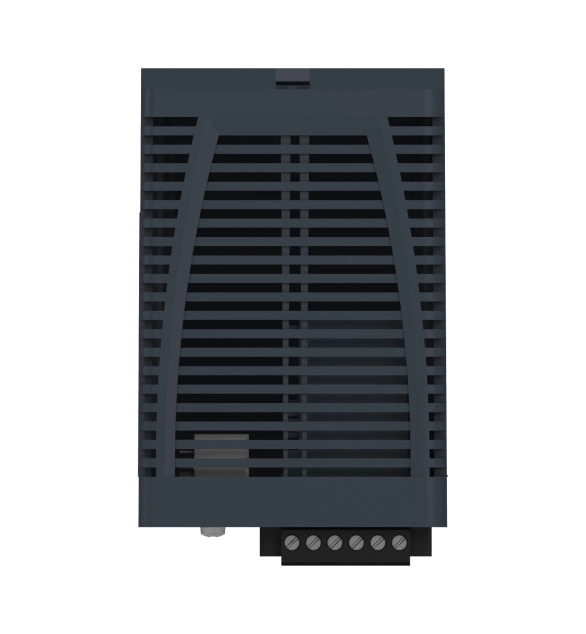

Modicon Managed Switch - 8 ports for copper + 1 port for fiber optic single-mode
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006410
-
Width
73
-
Power over Ethernet (PoE)
EV000154
-
Compatible with Grade2TV according to XP-C 90-483
FALSE
-
Compatible with Grade3TV according to XP-C 90-483
FALSE
-
Manageable
TRUE
-
Layer 3
FALSE
-
Depth
104
-
Height
138
-
Number of ports 10/100 Mbps RJ45
8
-
Mounting method
EV000941
-
Ethernet
FALSE
-
Layer 2
TRUE
-
Number of other ports
-
Number of ports 10 Gbps RJ45
-
Number of ports 100 Gbps Mini GBIC
-
Number of ports 40 Gbps Mini GBIC
-
Number of ports 1000 Mbps GBIC
-
Number of ports 10/100 Mbps M12
-
Number of ports 10/100/1000 Mbps RJ45
-
Number of ports 100 Mbps POF
-
Number of ports 1000 Mbps Mini GBIC
-
Number of ports 1000 Mbps SC (SX)
-
Number of combination-ports RJ45/Mini GBIC
-
Number of ports 100 Mbps ST
-
Number of ports 1000 Mbps RJ45
-
Number of max. stackable switches
-
Max. PoE power
-
Number of ports 100/1000 Mbps Mini GBIC
-
Number of ports 1000 Mbps SC (LX)
-
Number of module slots
-
Number of ports 1000 Mbps POF
-
Number of ports PoE
-
Number of ports 10 Gbps Mini GBIC
-
Number of ports 100 Mbps SC
1
Can you tell me about the Modicon Standard Managed Switch and what makes it unique?
The Modicon Managed Switch 8TX/1FX-SM is a standard managed Layer 2 switch from Schneider Electric’s Modicon Networking range. It offers secure, flexible Ethernet integration for industrial operations and features a compact, DIN rail-mountable design for easy installation.
What are the key technical specifications of the Modicon Standard Managed Switch?
It provides various switching features, redundancy protocols, communication services, cybersecurity, industrial protocol profiles, and diagnostic functions. This product has eight copper RJ45 ports supporting 10/100 Mbps, and one single‑mode fiber-optic port supporting 100 Mbps. The switch mounts on a 35 mm DIN rail, consumes 7 W, and supports dual power input with 12–24 V DC. It operates from 0 °C to 60 °C with IP30 protection, and measures 73 × 143 × 117 mm at 0.42 kg. It is CE, UL, RCM, EAC, UKCA, DNV, FCC, CCCEx certified and meets IEC62443-4-2, UL 61010, EN/IEC 61131, and EN/IEC 62368-1 standards.
What benefits does the Modicon Networking range offer?
The Modicon Networking range provides seamless Ethernet connectivity, flexibility, cybersecurity, and scalability for reliable industrial networking.
