СКУ: TM172PBG07R

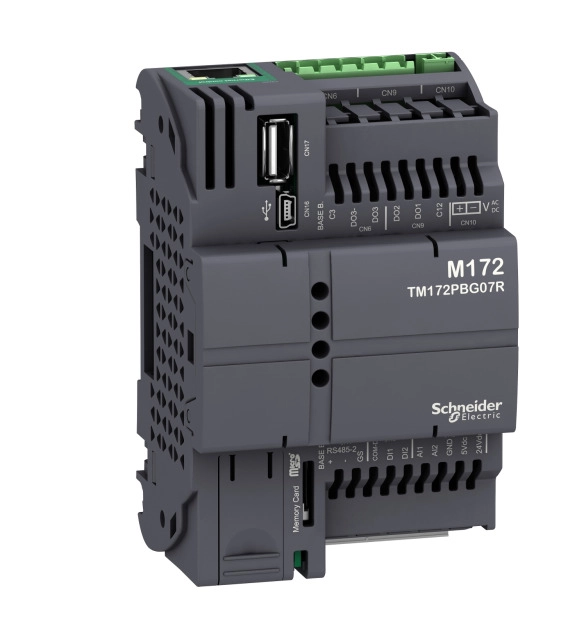

Modicon M172 Performance Blind 7 входа/изхода, Ethernet, Modbus
-
Brand
Schneider Electric
-
Supporting protocol for SERCOS
FALSE
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Radio standard GPRS
FALSE
-
Supporting protocol for INTERBUS-Safety
FALSE
-
Supporting protocol for AS-Interface Safety at Work
FALSE
-
Radio standard GSM
FALSE
-
Explosion safety category for dust
EV000494
-
Radio standard UMTS
FALSE
-
Explosion safety category for gas
EV000494
-
Supporting protocol for DeviceNet Safety
FALSE
-
Supporting protocol for EtherNet/IP
FALSE
-
Supporting protocol for Foundation Fieldbus
FALSE
-
Supporting protocol for SafetyBUS p
FALSE
-
Supporting protocol for PROFINET CBA
FALSE
-
Supporting protocol for PROFINET IO
FALSE
-
Supporting protocol for PROFIsafe
FALSE
-
Supporting protocol for ASI
FALSE
-
Radio standard Bluetooth
FALSE
-
Supporting protocol for PROFIBUS
FALSE
-
Appendant operation agent (Ex ia)
FALSE
-
Radio standard Wi-Fi 802.11
FALSE
-
Front built-in possible
FALSE
-
Supporting protocol for KNX
FALSE
-
Appendant operation agent (Ex ib)
FALSE
-
Supporting protocol for INTERBUS
FALSE
-
IO link master
FALSE
-
Supporting protocol for DeviceNet
FALSE
-
Suitable for safety functions
FALSE
-
Supporting protocol for Data-Highway
FALSE
-
Rack-assembly possible
FALSE
-
Supporting protocol for LON
FALSE
-
Supporting protocol for SUCONET
FALSE
-
Rail mounting possible
TRUE
-
Supporting protocol for other bus systems
FALSE
-
Width
72
-
With display
FALSE
-
With optical interface
FALSE
-
System accessory
FALSE
-
Supporting protocol for TCP/IP
TRUE
-
Supporting protocol for Modbus
TRUE
-
Number of HW-interfaces RS-485
2
-
Number of HW-interfaces other
1
-
Number of HW-interfaces USB
2
-
Voltage type of supply voltage
EV000509
-
Supporting protocol for CAN
TRUE
-
Wall mounting/direct mounting
TRUE
-
Number of HW-interfaces industrial Ethernet
1
-
Number of analogue inputs
2
-
Redundancy
FALSE
-
Type of memory
EV000506
-
Supporting protocol for IEC 61850 Ethernet
FALSE
-
Height
110
-
Number of digital outputs
3
-
Supply voltage AC 50 Hz
24
-
Supply voltage AC 60 Hz
24
-
Supporting protocol for IEC 60870
FALSE
-
Supporting protocol for DNP3
FALSE
-
Model
EV002153
-
Long-Term Evolution (LTE)
FALSE
-
Memory size
512
-
Processing time (1K, binary operation)
100
-
Additional program memory possible
FALSE
-
Number of digital inputs
2
-
Depth
60.5
-
Supply voltage DC
20
-
Number of relay outputs
3
-
Number of analogue outputs
-
Number of HW-interfaces parallel
-
Number of interfaces PROFINET
-
Number of HW-interfaces Wireless
-
Number of HW-interfaces RS-422
-
Number of HW-interfaces RS-232
-
Max. number of time switches
This logic controller is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This controller figures 2 digital inputs, 2 analog inputs, and 3 digital outputs. It has an Ethernet port, a CAN bus port, 2x RS485 ports, a USB-A, a USB-B, an SD card slot, a Communication module port. It is a programmable logic controller for HVAC and Pumping applications. DIs are high-speed counters, AIs are NTC, PT1000, PTC, 0-20mA, 4-20mA, 0-5V, 0-10V, hOhm, daOhm, and DIs. DOs are SPDT relays, SPST 3A with the same common. It measures 72mm wide, 60.5mm deep, 110mm high, and weighs 0.175kg. This controller is designed for HVAC solutions. It is certified by CE, RCM, EAC, CSA and CURus. It is compatible with screw terminal blocks, remote display, and communication modules. It is sold in a 1-piece package. It is designed for 35mm rail mounting. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.
