СКУ: TM172PBG28RI

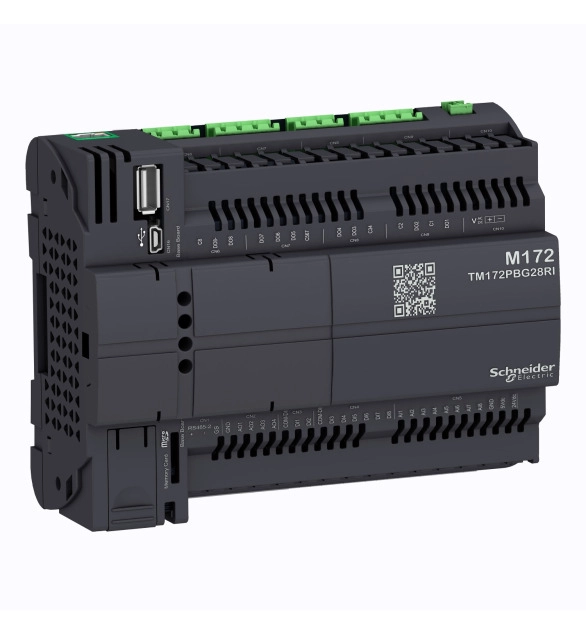

Modicon M172 Performance Blind 28 входа/изхода, Eth, изолиран
-
Brand
Schneider Electric
-
SIL according to IEC 61508
EV000494
-
Suitable for safety functions
FALSE
-
Suitable for operating system Windows CE
FALSE
-
Suitable for operating system Linux
FALSE
-
Maintenance function integrated
FALSE
-
Suitable for operating system Windows 8
FALSE
-
Integrated motion function
FALSE
-
Integrated analysis function
FALSE
-
Simulation function integrated
FALSE
-
Integrated position function
FALSE
-
According to IEC 1131-3 (DIN EN 61131-3)
FALSE
-
Put into operation function integrated
FALSE
-
Suitable for operating system Windows 2003 Server
FALSE
-
Suitable for operating system Windows Vista
FALSE
-
With editor for programming language FBD (Function Block Diagram)
FALSE
-
With editor for programming language ST (structured text)
FALSE
-
With editor for programming language IL (Instruction List)
FALSE
-
With editor for programming language LD (Ladder Diagram)
FALSE
-
With editor for programming language SFC (Sequential Function Chart)
FALSE
-
Suitable for operating system Windows 7
FALSE
-
With editor for programming language Flowchart
FALSE
-
With editor for manufacturer specific programming language
FALSE
-
Suitable for operating system Windows 9x
FALSE
-
Integrated diagnosis function
FALSE
-
Integrated application configuration function
FALSE
-
Suitable for operating system Windows XP
FALSE
-
Integrated data detection function
FALSE
-
Suitable for operating system Windows ME
FALSE
-
Integrated configuration function
FALSE
-
Suitable for operating system Windows NT
FALSE
-
Integrated evaluation function
FALSE
-
Suitable for operating system Windows 2000
FALSE
-
Suitable for other operating system
FALSE
-
Object library
EV005747
-
Technology function integrated
FALSE
-
Integrated communication function
FALSE
This logic controller is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This controller figures 12 digital inputs, 12 analog inputs, 12 digital outputs, and 6 analog outputs. It has an Ethernet port, a CAN bus port, 2x RS485 ports, a USB-A, a USB-B, an SD card slot, a Communication module port. It is a programmable logic controller for HVAC and Pumping applications. DIs are 24 Vdc, high-speed counters, AIs are NTC, PT1000, PTC, 0-20mA, 4-20mA, 0-5V, 0-10V, and DIs. DOs are SPDT relay 3A, SPST 3A with the same or independent common, AOs are 0-10 V, 4-20mA, PWM (2kHz, 24 Vdc), 0-10V. It measures 144mm wide, 60.5mm deep, 110mm high, and weighs 0.385kg. This controller is designed for HVAC solutions. It is certified by CE, RCM, EAC, CSA and CURus. It is compatible with screw terminal blocks, remote display, and communication modules. It is sold in a 1-piece package. It is designed for 35mm rail mounting. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.
