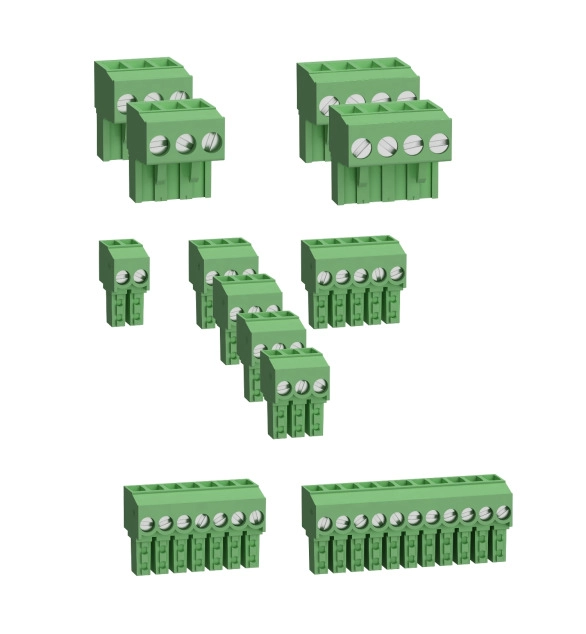

Modicon M172 Performance 28 I/Os винтови клемни блокове

• Brand
  Schneider Electric
• Supporting protocol for SERCOS
  FALSE
• SIL according to IEC 61508
  EV000494
• Performance level according to EN ISO 13849-1
  EV000494
• Radio standard GPRS
  FALSE
• Supporting protocol for INTERBUS-Safety
  FALSE
• Supporting protocol for AS-Interface Safety at Work
  FALSE
• Radio standard GSM
  FALSE
• Explosion safety category for dust
  EV000494
• Radio standard UMTS
  FALSE
• Explosion safety category for gas
  EV000494
• Supporting protocol for DeviceNet Safety
  FALSE
• Supporting protocol for Foundation Fieldbus
  FALSE
• Supporting protocol for SafetyBUS p
  FALSE
• Supporting protocol for PROFINET CBA
  FALSE
• Supporting protocol for PROFINET IO
  FALSE
• Supporting protocol for PROFIsafe
  FALSE
• Supporting protocol for ASI
  FALSE
• Radio standard Bluetooth
  FALSE
• Supporting protocol for PROFIBUS
  FALSE
• Appendant operation agent (Ex ia)
  FALSE
• Radio standard Wi-Fi 802.11
  FALSE
• Front built-in possible
  FALSE
• Supporting protocol for KNX
  FALSE
• Appendant operation agent (Ex ib)
  FALSE
• Supporting protocol for INTERBUS
  FALSE
• IO link master
  FALSE
• Supporting protocol for DeviceNet
  FALSE
• Supporting protocol for Modbus
  FALSE
• Suitable for safety functions
  FALSE
• Supporting protocol for Data-Highway
  FALSE
• Rack-assembly possible
  FALSE
• Supporting protocol for LON
  FALSE
• Supporting protocol for SUCONET
  FALSE
• Rail mounting possible
  TRUE
• Supporting protocol for other bus systems
  FALSE
• With display
  FALSE
• With optical interface
  FALSE
• System accessory
  FALSE
• Number of digital outputs
  8
• Number of HW-interfaces parallel
• Number of interfaces PROFINET
• Number of HW-interfaces Wireless
• Supporting protocol for EtherNet/IP
  TRUE
• Supporting protocol for TCP/IP
  TRUE
• Number of HW-interfaces RS-485
  2
• Number of HW-interfaces other
  1
• Number of HW-interfaces USB
  2
• Voltage type of supply voltage
  EV000509
• Supporting protocol for CAN
  TRUE
• Number of HW-interfaces RS-422
• Wall mounting/direct mounting
  TRUE
• Number of HW-interfaces industrial Ethernet
  1
• Number of analogue outputs
  4
• Number of digital inputs
  8
• Number of analogue inputs
  8
• Redundancy
  FALSE
• Number of HW-interfaces RS-232
• Supporting protocol for IEC 61850 Ethernet
  FALSE
• Height
  110
• Supply voltage AC 50 Hz
  24
• Supply voltage AC 60 Hz
  24
• Width
  144
• Supporting protocol for IEC 60870
  FALSE
• Supporting protocol for DNP3
  FALSE
• Model
  EV002153
• Long-Term Evolution (LTE)
  FALSE
• Processing time (1K, binary operation)
  0.3
• Memory size
  0.512
• Max. number of time switches
• Additional program memory possible
  FALSE
• Number of relay outputs
  8
• Depth
  60.5
• Type of memory
  EV000154
• Supply voltage DC
  20
