СКУ: TM172DCLWT

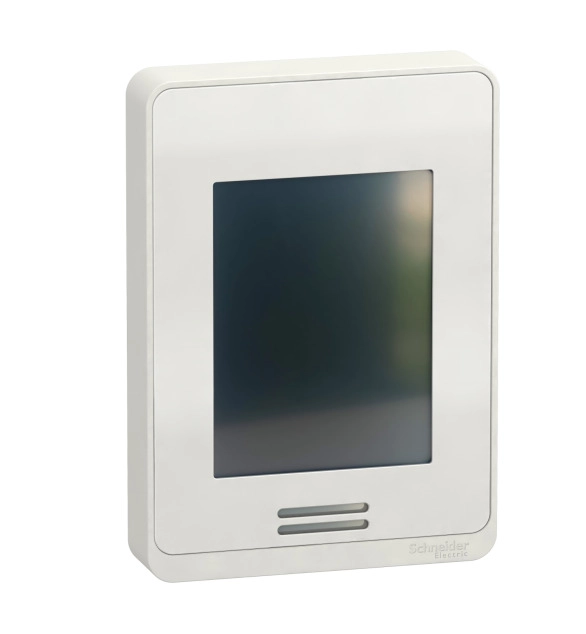

Modicon M172 Display Color TouchScreen, Temperature built-in sensor
-
Brand
Schneider Electric
-
Supporting protocol for SERCOS
FALSE
-
Radio standard GPRS
FALSE
-
Supporting protocol for INTERBUS-Safety
FALSE
-
Supporting protocol for AS-Interface Safety at Work
FALSE
-
Radio standard GSM
FALSE
-
Radio standard UMTS
FALSE
-
Supporting protocol for DeviceNet Safety
FALSE
-
Supporting protocol for EtherNet/IP
FALSE
-
Supporting protocol for Foundation Fieldbus
FALSE
-
Supporting protocol for SafetyBUS p
FALSE
-
Supporting protocol for PROFINET CBA
FALSE
-
Supporting protocol for PROFINET IO
FALSE
-
Supporting protocol for PROFIsafe
FALSE
-
Supporting protocol for ASI
FALSE
-
Radio standard Bluetooth
FALSE
-
Supporting protocol for PROFIBUS
FALSE
-
Radio standard Wi-Fi 802.11
FALSE
-
Supporting protocol for TCP/IP
FALSE
-
Supporting protocol for KNX
FALSE
-
Supporting protocol for CAN
FALSE
-
Supporting protocol for INTERBUS
FALSE
-
IO link master
FALSE
-
Supporting protocol for DeviceNet
FALSE
-
Rail mounting possible
FALSE
-
Supporting protocol for Modbus
FALSE
-
Suitable for safety functions
FALSE
-
Supporting protocol for Data-Highway
FALSE
-
Supply voltage DC
24
-
Supporting protocol for LON
FALSE
-
Supporting protocol for SUCONET
FALSE
-
Wall mounting/direct mounting
FALSE
-
Supporting protocol for other bus systems
FALSE
-
Built-in depth
25
-
With message indication
FALSE
-
With numeric keyboard
FALSE
-
With alpha numeric keyboard
FALSE
-
With message system (incl. buffer and confirmation)
FALSE
-
Process default value (input) possible
FALSE
-
Additional software components, loadable
FALSE
-
Operating temperature
-30
-
With printer output
FALSE
-
With SW interfaces
FALSE
-
Voltage type of supply voltage
EV000509
-
Number of pixels, horizontal
320
-
With colour display
TRUE
-
Number of pixels, vertical
240
-
Process value representation (output) possible
FALSE
-
With recipes
FALSE
-
Touch technology
EV000154
-
Type of display
EV000154
-
Degree of protection (IP), front side
EV000154
-
Supply voltage AC 50 Hz
24
-
Supply voltage AC 60 Hz
24
-
Number of colours of the display
12
-
Number of HW-interfaces parallel
-
Number of interfaces PROFINET
-
Number of HW-interfaces serial TTY
-
Number of HW-interfaces USB
-
Number of grey-scales/blue-scales of display
-
Number of HW-interfaces Wireless
-
Number of buttons with LED
-
Number of HW-interfaces RS-422
-
Number of HW-interfaces RS-485
-
Number of HW-interfaces industrial Ethernet
-
Number of HW-interfaces RS-232
-
Number of HW-interfaces other
-
Number of function buttons, programmable
-
Number of password levels
-
Number of system buttons
-
Number of online languages
-
Width of the front
86
-
Height of the front
120
This remote display is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This color touchscreen display is an accessory to the M172 Optimized and Performance controllers. It is powered with a 24VACDC supply and has a built-in sensor for Temperature control. It is designed for indoor use to control temperature with a built-in sensor. It figures one Communication port fRS485 Modbus serial line. Its screen size is 3.5inches, with a 320x240pixels resolution, and its Ip level is IP20. It measures 86mm wide, 25mm deep, 120mm high, and weighs 0.340kg. It is remote display for Modicon M172 logic controllers. It is certified by CE, RCM, EAC and CTUVus. It is compatible with M172 Optimized and M172 Performance logic controllers. It is sold in a 1-piece package. It is designed for wall mounting. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.
