СКУ: A9A26969

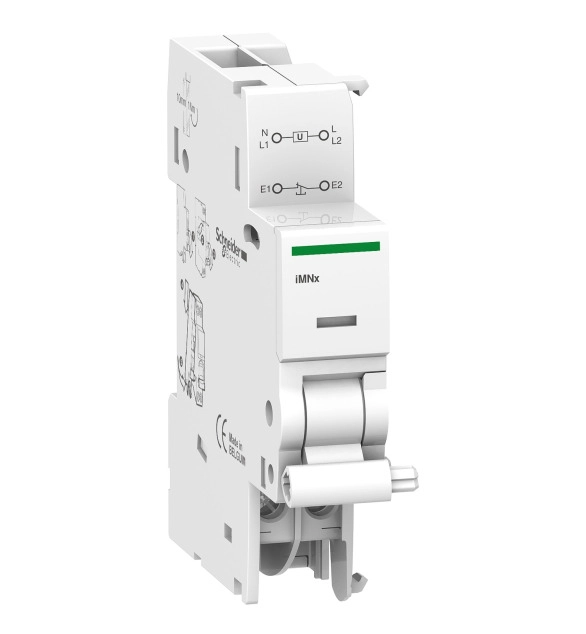

Миним.напреж.изключвател iMNx tripping unit 220-240VAC

  • Brand
    Schneider Electric
  • Width in number of modular spacings
    1
  • Voltage type for actuating
    EV000460
  • Rated voltage
    240
  • With auto test for earth leakage function
    FALSE
  • Suitable for max. number of poles main contact unit (total)
    4
  • Device fitting
    EV000646
  • Installed at the factory
    FALSE
  • Suitable for max. current main contact unit
    63
  • Additional equipment
    EV010155
  • Number of contacts as normally open contact
  • Number of contacts as normally closed contact
  • Number of contacts as change-over contact
  • Number of fault-signal switches

This Acti9 iMNx electrical auxiliary is an undervoltage release independent of the supply voltage. It is compatible with Acti9 ranges such as iC60, iID, iDPN Vigi, iSW-NA, iC60H RCBO, iC60H RCBO PoN, iC60H2 RCBO, iC60N RCBO, and iKQE RCBO. The width in 9mm pitches is 2. It trips the associated device by opening of the control circuit. A drop in the supply voltage does not trip the associated device. There is a red mechanical indicator on the front face of the product to indicate the tripped position of the associated device. The Ue rated operational voltage is 220VAC to 240VAC. The operating frequency is 50Hz or 60Hz. The operating temperature is -35°C to + 70°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standards.
