СКУ: LC1D32E5

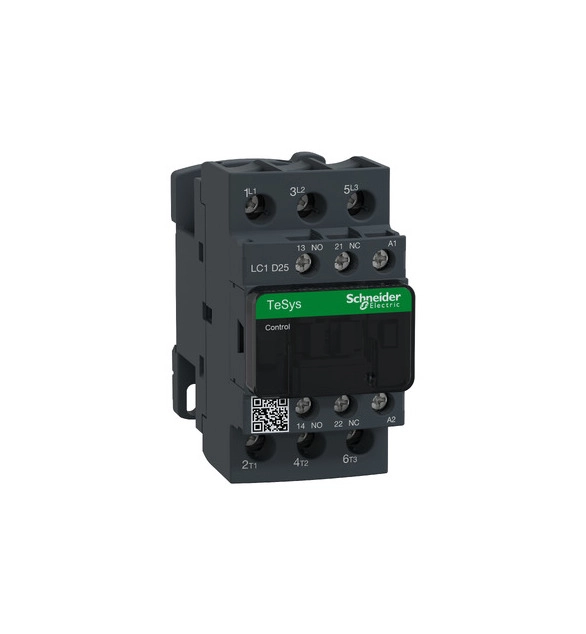

Контактор 3P 32A AC3 15KW 48V 50HZ
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Voltage type for actuating
EV000460
-
Rated control supply voltage Us at AC 50HZ
220
-
Rated control supply voltage Us at AC 60HZ
220
-
Number of auxiliary contacts as normally closed contact
1
-
Number of auxiliary contacts as normally open contact
1
-
Rated operation power at AC-3, 400 V
15
-
Modular version
FALSE
-
Rated operation current Ie at AC-3, 400 V
32
-
Number of normally closed contacts as main contact
-
Number of normally open contacts as main contact
3
-
Rated operation current Ie at AC-1, 400 V
50
TeSys D contactor, 3 poles (1NO+1NC), for non-inductive load applications up to 32A/690V AC-1. It provides a 230V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by spring terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
