СКУ: A9C62325

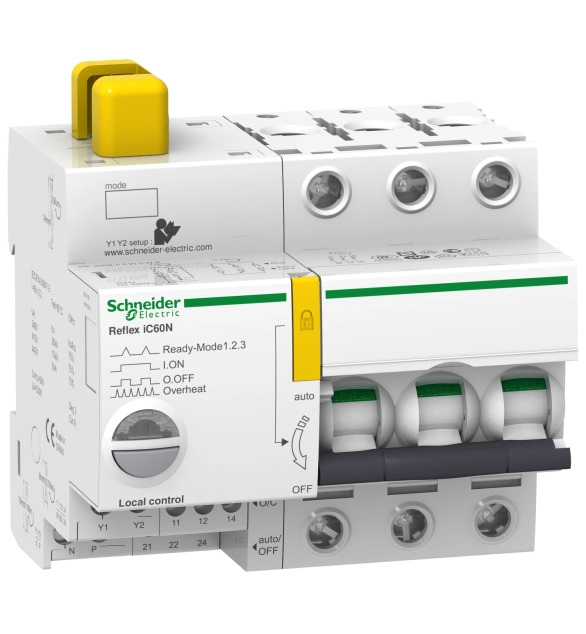

Миниатюрен прекъсвач с интрегриран контролер Reflex iC60N Ti24 25 A 3P-крива C
-
Brand
Schneider Electric
-
Number of poles
3
-
Degree of protection (IP)
EV006405
-
Concurrently switching neutral conductor
FALSE
-
Frequency
50
-
Release characteristic
EV000084
-
Over voltage category
4
-
Pollution degree
3
-
Rated current
25
-
Rated voltage
415
-
Voltage type
EV000460
-
Built-in depth
44.5
-
Rated short-circuit breaking capacity according to IEC 60947-2
10
-
Additional equipment attached at delivery
EV009771
-
Construction size (according to DIN 43880)
3
-
Rated switch current auxiliary device
1
-
Rated voltage auxiliary device
230
-
Control voltage type auxiliary equipment
EV000460
-
Width in number of modular spacings
5.5
-
Current limiting class
This Acti9 Reflex iC60N is a low voltage integrated control circuit breaker. It is a 3P circuit breaker with 3 protected poles, 25A rated current and C tripping curve. It can be mounted on DIN rail for modular installation. Its width is 11 modules of 9mm. As circuit breaker, its breaking capacity, according to IEC/EN 60947-2, is 20kA at 220VAC to 240VAC, and 10kA at 380VAC to 415VAC. As circui-breaker, it protects circuits against short circuit and overload currents, disconnection in the industrial sector. It can control a device remotely by latched and/or impulse-type order according to the 3 operating modes to be chosen by the user. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. It becomes IP40 once in modular enclosure with insulation class II. Resetting after a fault is performed manually by the resetting handle. The Ti24 interface allows direct interfacing of the Reflex iC60 with a PLC. It allows to execute remote control, to indicate the state of the control circuit and circuit breaker state information, to connect it to the Acti9 Smartlink thanks to the prefabricated cables.
