СКУ: A9C65416

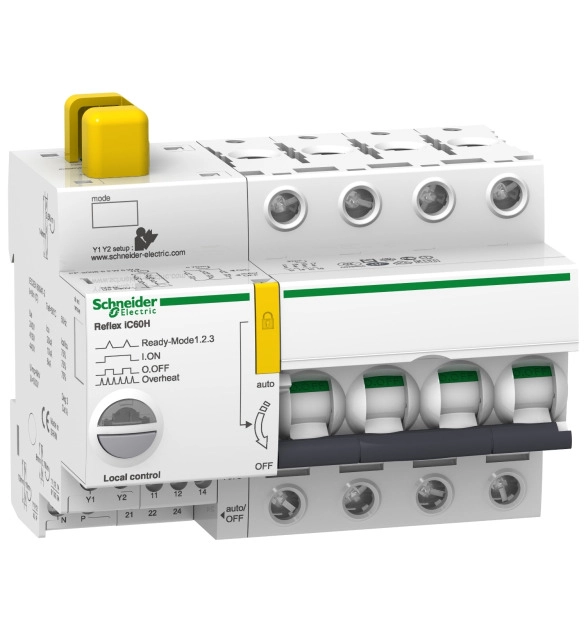

Миниатюрен прекъсвач с интрегриран контролер Reflex iC60H Ti24 16 A 4P-крива C
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Concurrently switching neutral conductor
FALSE
-
Number of poles
4
-
Frequency
50
-
Release characteristic
EV000084
-
Over voltage category
4
-
Pollution degree
3
-
Rated current
16
-
Rated voltage
415
-
Voltage type
EV000460
-
Built-in depth
44.5
-
Current limiting class
-
Additional equipment attached at delivery
EV009771
-
Construction size (according to DIN 43880)
3
-
Rated switch current auxiliary device
1
-
Rated voltage auxiliary device
230
-
Control voltage type auxiliary equipment
EV000460
-
Width in number of modular spacings
6.5
-
Rated short-circuit breaking capacity according to IEC 60947-2
15
This Acti9 Reflex iC60H is a low voltage integrated control circuit breaker. It combines integrated circuit breaker protection and load control for lighting control applications. It has 3P with 3 protected poles, rated current 25A and C tripping curve. Y1/Y2 inputs remote control voltage is 230VAC and 1A. They allow local and remote control of lighting. Y3 input remote control voltage is 24VDC and 5.5mA. Y3 allow easy connection to a Power Logic Controller or a Building Management System. Breaking capacity at 230VAC is 30kA according to IEC 60947-2 . Breaking capacity at 400VAC is 15kA according to IEC 60974-2. Electrical endurance goes up to 30000 cycles for AC-1 or AC-7a. Electrical endurance goes up to 6000 cycles for AC-5a or AC-5b and AC-7c. It is possible to associate a vigi block to have a differential protection.
