MINI PLUG-IN TIMER 4C/O 24VAC | Spark & Co
  • 3D
|

СКУ: REXL4TMB7

MINI PLUG-IN TIMER 4C/O 24VAC

  • Brand
    Schneider Electric
  • Voltage type for actuating
    EV000460
  • Suitable for front mounting
    FALSE
  • Rated control supply voltage Us at AC 50HZ
    24
  • Rated control supply voltage Us at AC 60HZ
    24
  • Suitable for DIN rail (top hat rail) mounting
    FALSE
  • Width
    21
  • Type of electric connection
    EV000414
  • Height
    27
  • Nominal current
    5
  • Depth
    63
  • With semiconductor output
    FALSE
  • Function delay on de-energization
    FALSE
  • Pluggable on auxiliary contact block
    FALSE
  • Clock function, starting with pause, variable
    FALSE
  • Clock function, starting with pulse, variable
    FALSE
  • Function floating contact on de-energization
    FALSE
  • Function floating contact on energization
    FALSE
  • Outputs, reversible delayed/undelayed
    FALSE
  • Function star-delta
    FALSE
  • Function flashing, starting with pause, fixed time
    FALSE
  • Function flashing, starting with pulse, fixed time
    FALSE
  • Remote operation possible
    FALSE
  • Suitable as remote control
    FALSE
  • Time range
    0.1
  • Function pulse shaping
    FALSE
  • Function delay-on energization
    TRUE
  • With plug-in socket
    TRUE
  • Number of outputs, delayed, normally open contact
  • Number of outputs, delayed, normally closed contact
  • Number of outputs, undelayed, normally open contact
  • Number of outputs, undelayed, normally closed contact
  • Number of outputs, undelayed, change-over contact
  • Rated control supply voltage Us at DC
  • Number of outputs, delayed, change-over contact
    4

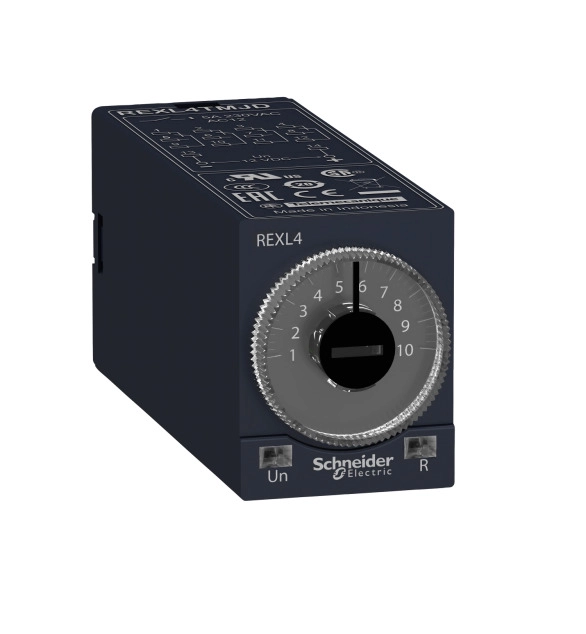

This Harmony REXL ON-delay timer can be set between 0.1 seconds and 100 hours. It provides function A and it uses plug-in mounting. This modular ON-delay timer is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It is a plug-in device, meaning it is quick and easy to install with the need for tools. It also offers a sealable cover, simple and precise settings with rotary trimmers. It is designed for socket plug in, this allows quick and easy installation and minimizes set up and repair time. Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC.
