СКУ: SDD112478
Междинен TV конектор 10dB, Sedna, крем
-
Brand
Schneider Electric
-
Material
EV000139
-
Transparent
FALSE
-
Material quality
EV000403
-
Shielded buses
FALSE
-
Outlet direction
EV000164
-
Shielded housing
FALSE
-
Mounting method
EV000383
-
Anti-bacterial treatment
FALSE
-
Surface protection
EV006034
-
Halogen free
TRUE
-
With strain relief
FALSE
-
Suitable for number of connectors
1
-
With hinged lid
FALSE
-
Suitable for degree of protection (IP)
EV006405
-
Type of fastening
EV006353
-
Surface finishing
EV006395
-
Luster terminal
FALSE
-
Imprintable label
EV006465
-
With dust cover
FALSE
-
Support ring
TRUE
-
Depth of device
35
-
Assembly arrangement
EV006345
-
Width of device
73
-
Height of device
73
-
Utilization
EV000154
-
With buses/couplings
TRUE
-
Impact strength
EV006808
-
With lighting
FALSE
-
RAL-number (similar)
1013
-
Colour
EV000279
-
With imprint
TRUE
-
Min. depth of built-in installation box
22.5

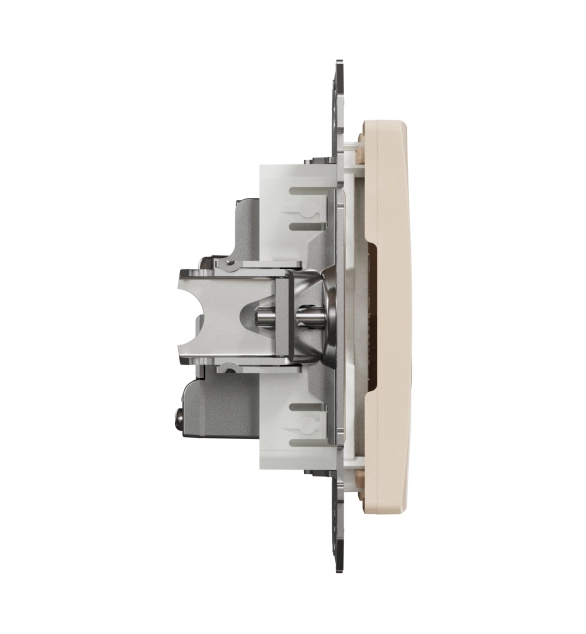

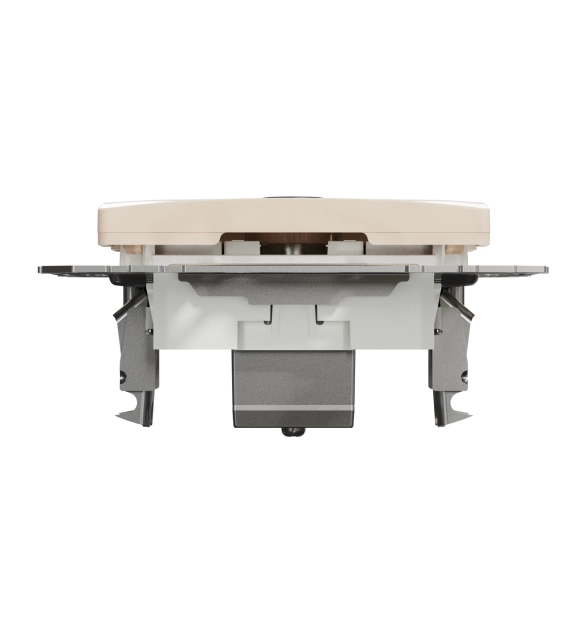

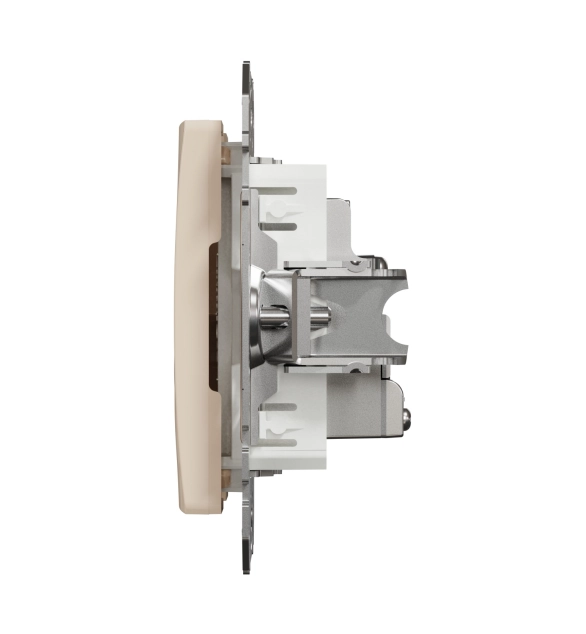

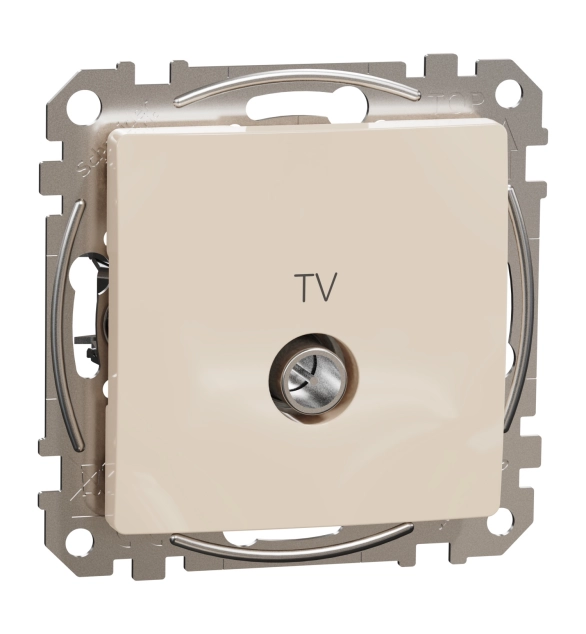

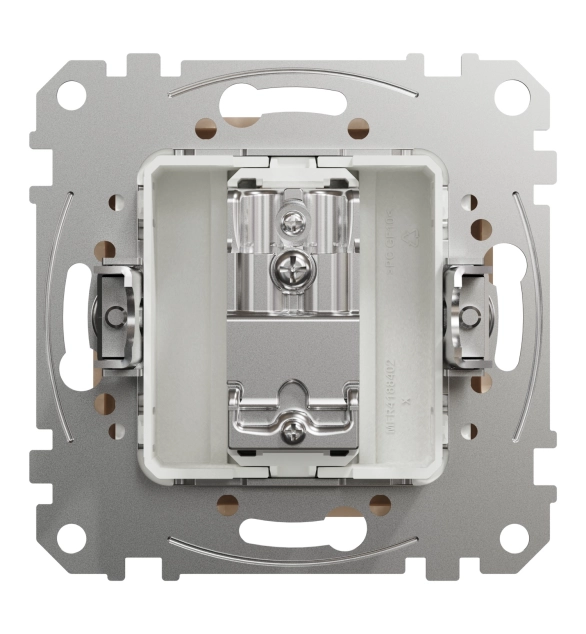

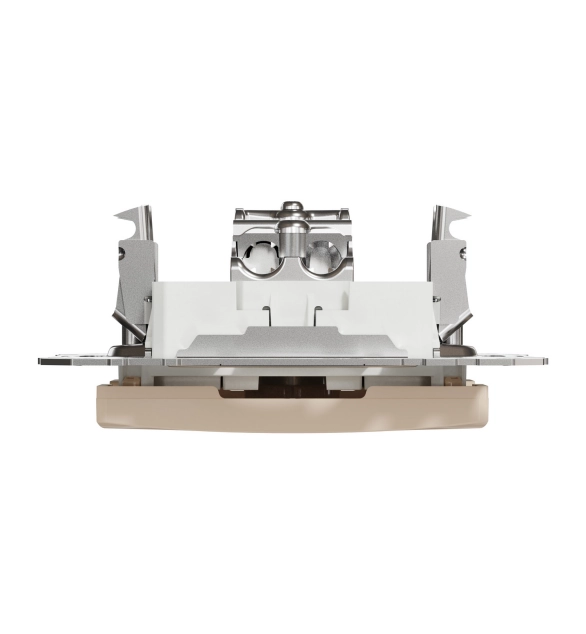

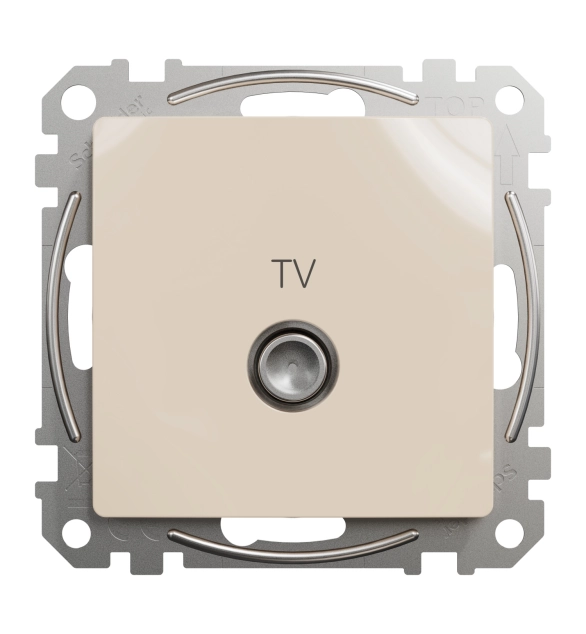

Sedna Design & Elements TV socket by Schneider Electric is a mechanism with fixing frame and cover plate for media device support and communication purposes. It’s having intermediate type of TV socket. It is provided with male IEC type of TV connector having 7 decibels of Path attenuation. Its matching mounting box can be recessed into the surface of the wall with flush type. The dimensions of the product are (W) 73mm x (H) 73mm x (D) 35mm. It is made of thermoplastic ABS-UV stabilised. The color of the product is beige (RAL 1013) with glossy surface finish. It reaches IP20 degree of protection with IK02 impact strength. Sedna Design & Elements is a new generation of electrical switches inspired by fashion and interior design. With modern lines that reflect today’s trends and a refined aesthetic, Sedna is more than an afterthought. Sedna Design & Elements goes even further in terms of ergonomics, ease of installation and use, reliability and quality finishes. The product complies with the CE Quality labels.
