СКУ: C25N3MA220

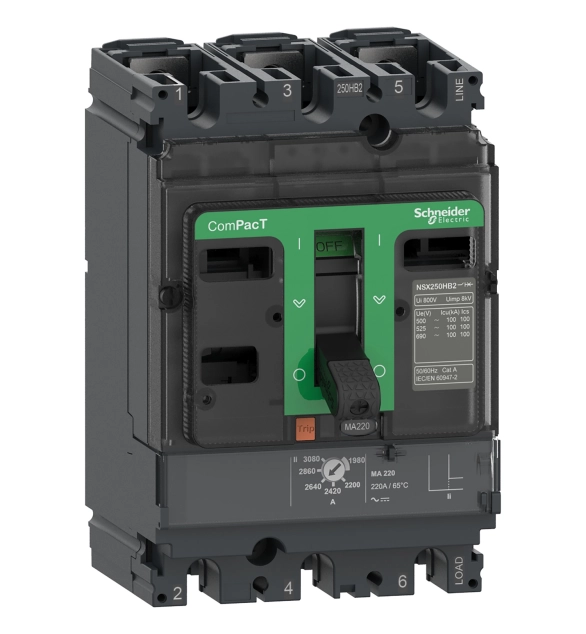

Автоматичен прекъсвач NSX250N 50kA AC 3P3D 220A MA
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Number of poles
3
-
Device construction
EV009211
-
Rated operating voltage
690
-
Degree of protection (IP)
EV006415
-
With integrated under voltage release
FALSE
-
Width
105
-
Type of control element
EV000154
-
With integrated auxiliary switch
FALSE
-
Switch off technique
EV006116
-
With thermal protection
FALSE
-
Rated short-circuit breaking capacity lcu at 400 V, AC
50
-
Height
161
-
Phase failure sensitive
FALSE
-
Rated permanent current Iu
220
-
Depth
86
-
Adjustment range undelayed short-circuit release
1980
This ComPacT NSX250N is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for motor protection applications. The breaking capacity (Icu) is 50kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 220A rating magnetic trip unit (MA). MA trip unit provides an adjustable magnetic protection for instantaneous tripping. This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX250N is part of Schneider Electric EcoStruxure Power architecture.
