СКУ: NSYSM1810402DP
Мет.табло SM с МП 2врати 1800X1000X400 NSYSM1810402DP
-
Brand
Schneider Electric
-
EMC-version
FALSE
-
RAL-number
7035
-
Colour
EV000270
-
With mounting plate
TRUE
-
Degree of protection (IP)
EV006420
-
Surface finishing
EV008895
-
Material
EV000179
-
With glazed door
FALSE
-
With backside door
FALSE
-
Depth
400
-
Material quality
EV000154
-
Number of doors
2
-
Width
1000
-
Degree of protection (NEMA)
EV022254
-
Connectable
FALSE
-
Suitable for outdoor set-up
FALSE
-
Detached
FALSE
-
Suitable for metrical mounting
TRUE
-
Pitched roof
FALSE
-
Floor standing wall model
TRUE
-
Intermediate mounting
FALSE
-
Corner model
FALSE
-
Suitable for wall mounting
FALSE
-
Suitable for wall built-in
FALSE
-
Mounting plate depth-adjustable
FALSE
-
With ventilation door
FALSE
-
Pole fastening
FALSE
-
Impact strength
EV008784
-
Height
1800
-
Number of locks
1
-
Max. permissible load of the enclosure according to IEC 62208
4900
-
Max. permissible load of the door(s) according to IEC 62208
588
-
Max. permissible load of the mounting plate according to IEC 62208
4503

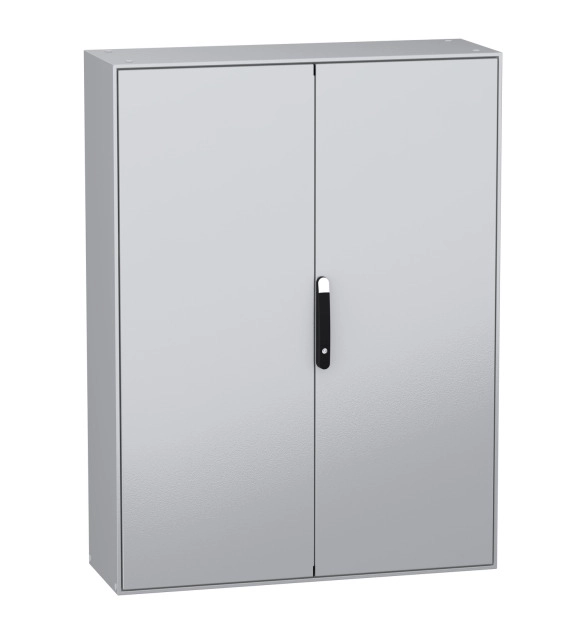

PanelSeT SM is a multi-purpose steel compact monobloc floor-standing enclosure designed for use in harsh environments. It has a nominal height, width and depth of 1800mm, 1000mm and 400mm respectively. The enclosure is made in grey color (RAL7035) with an epoxy-polyester powder surface finish and the handle is made in black color (RAL9005) It consists of one body, two plain doors, one cable gland plate with one entry, one plain mounting plate and four mounting plate brackets. The doors can be opened up to 120°, allowing easy access to the equipment inside. The enclosure has a four-point lock with a handle with 5mm double-bar insert. The doors, the mounting plate and the mounting plate brackets can be removed for maintenance purposes. It is certified by BV and UL and marine certified by DNV. This enclosure has IP55 ingress protection rating against dust and water and IK10 impact protectoin rating. It is certified by DNV, BV and UL
