СКУ: NSYCRN44200P
Мет.табло с МП CRN 400X400X200 NSYCRN44200P
-
Brand
Schneider Electric
-
EMC-version
FALSE
-
RAL-number
7035
-
Colour
EV000270
-
With mounting plate
TRUE
-
Surface finishing
EV008895
-
Material
EV000179
-
Depth
200
-
Degree of protection (NEMA)
EV000154
-
With glazed door
FALSE
-
Number of doors
1
-
With backside door
FALSE
-
Material quality
EV000154
-
Degree of protection (IP)
EV006422
-
Width
400
-
Height
400
-
Connectable
FALSE
-
Suitable for outdoor set-up
FALSE
-
Detached
FALSE
-
Pitched roof
FALSE
-
Intermediate mounting
FALSE
-
Corner model
FALSE
-
Suitable for wall built-in
FALSE
-
Mounting plate depth-adjustable
FALSE
-
With ventilation door
FALSE
-
Floor standing wall model
FALSE
-
Suitable for wall mounting
TRUE
-
Impact strength
EV008784
-
Suitable for metrical mounting
FALSE
-
Number of locks
1
-
Pole fastening
TRUE
-
Max. permissible load of the mounting plate according to IEC 62208
400
-
Max. permissible load of the enclosure according to IEC 62208
980
-
Max. permissible load of the door(s) according to IEC 62208
80

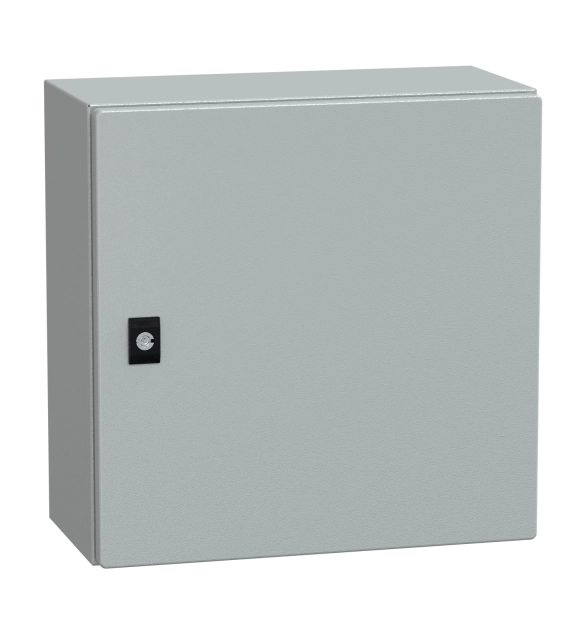

PanelSeT CRN is a multi-purpose wall-mounting enclosure designed for use in harsh environments It has an IK10 (IEC62262) rating and an IP66 (IEC60529) rating, making it highly resistant to dust and water, as well as high impact It has a nominal height, width, and depth of 400mm, 400mm, and 200mm, respectively The enclosure is made of steel, with a grey-coloured (RAL7035) epoxy-polyester powder finish The enclosure consists of a body, a cable gland plate, a plain door with a lock, and a mounting plate The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door and the cable gland plate can be removed for maintenance purposes, and the mounting plate can be removed with a fixing element The net weight of the enclosure is 8,6kg This compact enclosure is c.UL certified.
