Мет.табло CRN 600х400х150 без МП NSYCRN64150 | Spark & Co
  • 3D
|

СКУ: NSYCRN64150

Мет.табло CRN 600х400х150 без МП NSYCRN64150

  • Brand
    Schneider Electric
  • With mounting plate
    FALSE
  • EMC-version
    FALSE
  • RAL-number
    7035
  • Colour
    EV000270
  • Surface finishing
    EV008895
  • Material
    EV000179
  • Degree of protection (NEMA)
    EV000154
  • With glazed door
    FALSE
  • Number of doors
    1
  • With backside door
    FALSE
  • Material quality
    EV000154
  • Depth
    150
  • Degree of protection (IP)
    EV006422
  • Width
    400
  • Height
    600
  • Connectable
    FALSE
  • Suitable for outdoor set-up
    FALSE
  • Detached
    FALSE
  • Pitched roof
    FALSE
  • Intermediate mounting
    FALSE
  • Corner model
    FALSE
  • Suitable for wall built-in
    FALSE
  • Mounting plate depth-adjustable
    FALSE
  • With ventilation door
    FALSE
  • Floor standing wall model
    FALSE
  • Suitable for wall mounting
    TRUE
  • Impact strength
    EV008784
  • Suitable for metrical mounting
    FALSE
  • Number of locks
    1
  • Pole fastening
    TRUE
  • Max. permissible load of the mounting plate according to IEC 62208
    250
  • Max. permissible load of the door(s) according to IEC 62208
    50

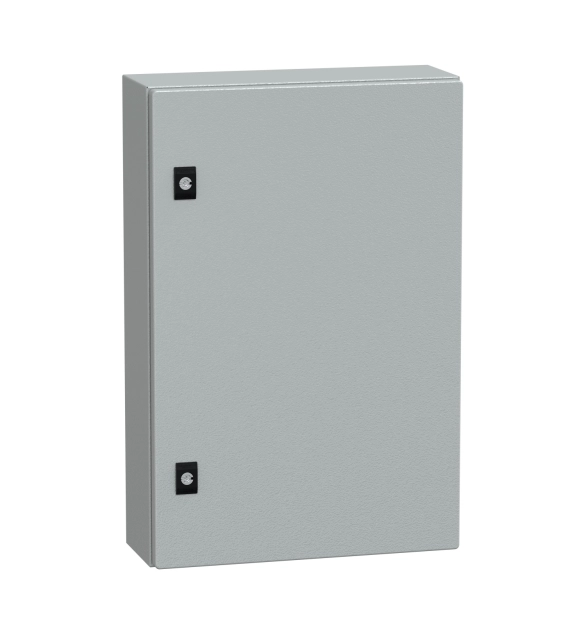

PanelSeT CRN steel wall-mounting enclosure for multi-purpose applications It is designed for use in harsh environments, withstanding high impact due to its IK10 (IEC62262) rating and high resistance to dust and water with an IP66 rating (IEC60529) This enclosure has a nominal height, width, and depth of 600mm, 400mm, and 250mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a cable gland plate, a plain door, and a lock The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door and the cable gland plate can be removed for maintenance purposes The sides of the enclosure are made from a single folded section, while the back is welded with double profile forming a protected sealed area The net weight of the enclosure is 10kg This compact enclosure is c.UL certified.
