Метално табло CRN 1000x600x250 one plain door | Spark & Co
  • 3D
|

СКУ: NSYCRN106250P

Метално табло CRN 1000x600x250 one plain door

  • Brand
    Schneider Electric
  • EMC-version
    FALSE
  • RAL-number
    7035
  • Colour
    EV000270
  • With mounting plate
    TRUE
  • Surface finishing
    EV008895
  • Material
    EV000179
  • Width
    600
  • Degree of protection (NEMA)
    EV000154
  • With glazed door
    FALSE
  • Number of doors
    1
  • With backside door
    FALSE
  • Material quality
    EV000154
  • Degree of protection (IP)
    EV006422
  • Height
    1000
  • Connectable
    FALSE
  • Suitable for outdoor set-up
    FALSE
  • Detached
    FALSE
  • Pitched roof
    FALSE
  • Intermediate mounting
    FALSE
  • Corner model
    FALSE
  • Suitable for wall built-in
    FALSE
  • Mounting plate depth-adjustable
    FALSE
  • With ventilation door
    FALSE
  • Floor standing wall model
    FALSE
  • Suitable for wall mounting
    TRUE
  • Impact strength
    EV008784
  • Depth
    250
  • Suitable for metrical mounting
    FALSE
  • Number of locks
    1
  • Pole fastening
    TRUE
  • Max. permissible load of the mounting plate according to IEC 62208
    1500
  • Max. permissible load of the enclosure according to IEC 62208
    2300
  • Max. permissible load of the door(s) according to IEC 62208
    300

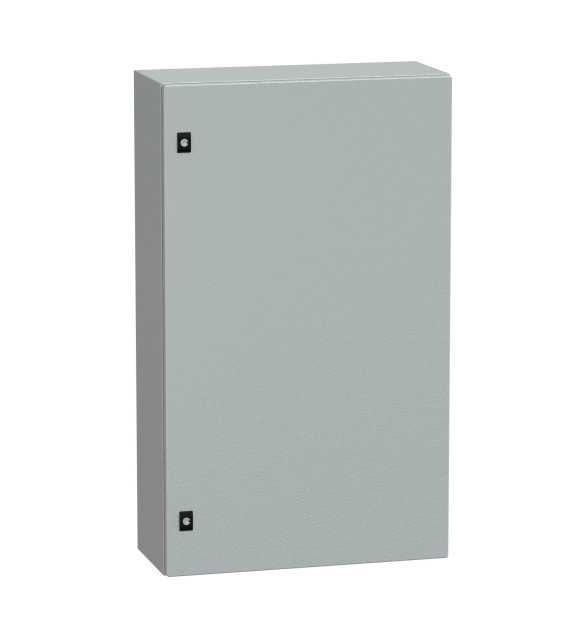

PanelSeT CRN is a multi-purpose wall-mounting enclosure designed for harsh environments It is certified by UL, cUL, and DNV-GL and has an IK10 (IEC62262) rating and an IP66 rating (IEC60529) This enclosure has a nominal height, width, and depth of 1000mm, 600mm, and 250mm, respectively The enclosure is constructed of steel with an epoxy-polyester powder surface finish and is grey-coloured (RAL7035) It consists of a body, a cable gland plate, a plain door with a 3mm double-bar lock, and a galvanised steel mounting plate The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door and the cable gland plate can be removed for maintenance purposes The mounting plate can be removed with a fixing element The net weight of the enclosure is 36kg The back is welded with a double profile to form a protected sealed area, and the sides are made from a single folded section The front face is accessible for operation
