СКУ: VW3M9110
LXM32I модул клеми ECT 4DI,2DO,STO
-
Brand
Schneider Electric
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Explosion safety category for dust
EV000494
-
Explosion safety category for gas
EV000494
-
Appendant operation agent (Ex ia)
FALSE
-
Appendant operation agent (Ex ib)
FALSE
-
Digital inputs configurable
FALSE
-
Short-circuit protection, outputs available
FALSE
-
Digital outputs configurable
FALSE
-
Redundancy
FALSE
-
Type of electric connection
EV000414
-
Type of digital output
EV001529
-
Number of digital inputs
4
-
Suitable for safety functions
TRUE
-
Depth
82
-
Width
115
-
Height
170
-
Number of digital outputs
2

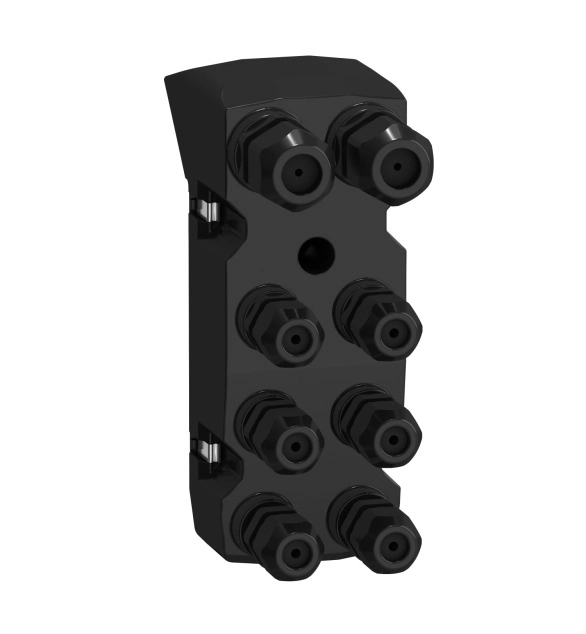

This product is part of the Lexium 32i range, an offer of integrated servo drives. It is a connection accessory for the Ethercat field bus on Lexium 32i integrated drives. It allows the connection on EtherCAT Fieldbus, that of the 4 discrete inputs, and the 2 discrete outputs. It has a printed circuit board for the unit control connection and a top section with 8 cut-outs for cable glands (6x M12 and 2x M16). It weighs 0.238kg. This product is certified TÜV Nord S(LA-0046/2010) and UL (E363147). It is compatible with LXM32i drive control units. It is installed on the drive control unit, and fixed by screws. Lexium 32i range is designed for application areas requiring high precision and advanced motor control. The servo motor and servo drive are integrated in one housing.
