Linergy изключващ блок - 2.5mm? 20A единично-ниво 1x1 натискане | Spark & Co
  • 3D
|

СКУ: NSYTRP22SC

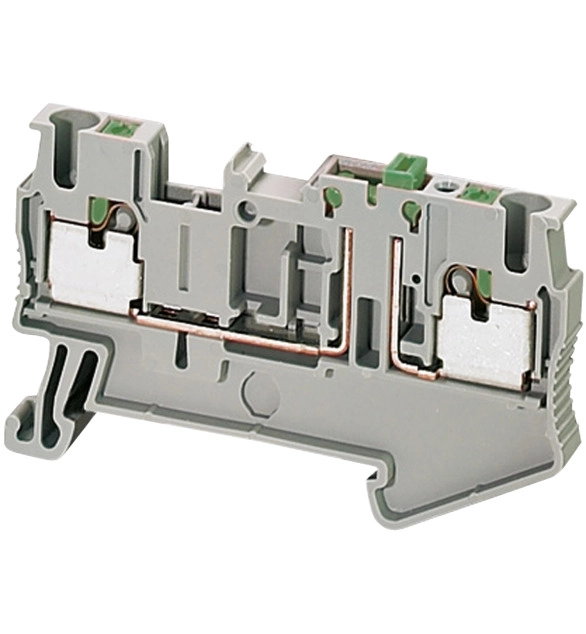

Linergy изключващ блок - 2.5mm? 20A единично-ниво 1x1 натискане

  • Brand
    Schneider Electric
  • Colour
    EV000270
  • Mounting method
    EV005503
  • Rated voltage
    400
  • Number of levels
    1
  • Internally connected stages
    FALSE
  • Inflammability class of insulation material according to with UL94
    EV004429
  • With integrated test socket
    FALSE
  • Material insulation body
    EV000403
  • Closing plate required
    TRUE
  • Operating temperature
    -40
  • Width
    5.2
  • Connectable conductor cross section solid-core
    0.14
  • Connectable conductor cross section multi-wired
    0.14
  • Connectable conductor cross section fine-strand without cable end sleeve
    0.14
  • Rated current In
    20
  • Type of electrical connection 2
    EV000414
  • Type of slitting
    EV000575
  • Type of cross disconnection
    EV000575
  • Number of clamp positions per level
    1
  • Type of electrical connection 1
    EV000414
  • Height
    36.5

Linergy TR is terminal block for Linergy. It belongs to linergy knife disconnect terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 300V conforming to CSA/UL and 400V conforming to EN/IEC 60947-7-1. The rated current is 20A conforming to EN/IEC 60947-7-1 and 20A conforming to CSA and UL. It has grey surface treatment. Mounting by clip-on and top connection by single-level 1x1 push-in terminals. It could be connection without tool and disconnection by flat screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, GL).
