СКУ: LC1D406BWS207

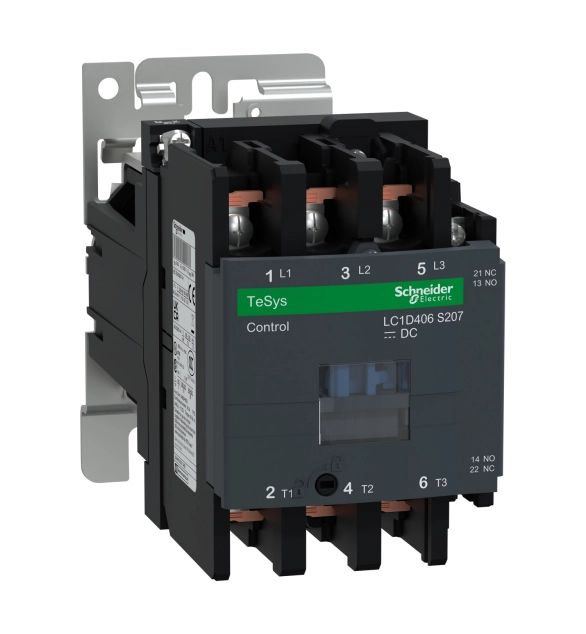

Контактор, TeSys Deca, релсов S207, 3P(3NO),AC-3/AC-3e 40A, <=440V, 24V DC широк диапазон на напрежението на бобината
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Rated operation power at AC-3, 400 V
18.5
-
Voltage type for actuating
EV000461
-
Rated control supply voltage Us at DC
24
-
Number of auxiliary contacts as normally closed contact
1
-
Number of auxiliary contacts as normally open contact
1
-
Modular version
TRUE
-
Number of normally open contacts as main contact
3
-
Rated operation current Ie at AC-1, 400 V
60
-
Rated operation current Ie at AC-3, 400 V
40
-
Rated operation power NEMA
22.4
-
Rated operation current Ie at AC-4, 400 V
40
-
Rated operation power at AC-4, 400 V
18.5
-
Number of normally closed contacts as main contact
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 40A/690V AC-3/3e (22kW@440V). It provides a 24V DC wide range coil, 1NO+1NC built-in auxiliary contacts, connection by ring-lugs screw terminals. It procures high reliability and durability with 3600 cycles/hour operating rates under 60°C environment temperature. The dimension is 127mm x 75mm x 176mm (H x W x D), mounting on rail or plate. Multi standards certified (IEC, CCC, UKCA), Sustainability compliant.
