СКУ: TM200CE40R

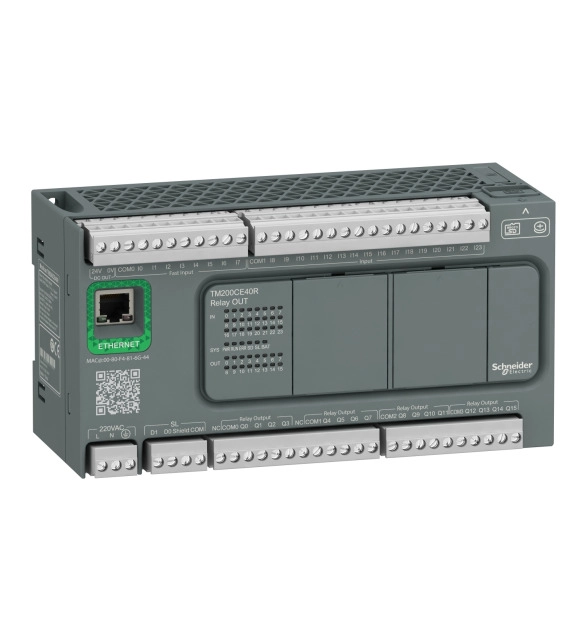

Контролер M200 40 IO реле+Ethernet
-
Brand
Schneider Electric
-
Supporting protocol for SERCOS
FALSE
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Radio standard GPRS
FALSE
-
Height
90
-
Supporting protocol for INTERBUS-Safety
FALSE
-
Supporting protocol for AS-Interface Safety at Work
FALSE
-
Radio standard GSM
FALSE
-
Explosion safety category for dust
EV000494
-
Radio standard UMTS
FALSE
-
Explosion safety category for gas
EV000494
-
Supporting protocol for DeviceNet Safety
FALSE
-
Supporting protocol for EtherNet/IP
FALSE
-
Supporting protocol for Foundation Fieldbus
FALSE
-
Supporting protocol for SafetyBUS p
FALSE
-
Supporting protocol for PROFINET CBA
FALSE
-
Supporting protocol for PROFINET IO
FALSE
-
Supporting protocol for PROFIsafe
FALSE
-
Supporting protocol for ASI
FALSE
-
Radio standard Bluetooth
FALSE
-
Supporting protocol for PROFIBUS
FALSE
-
Appendant operation agent (Ex ia)
FALSE
-
Radio standard Wi-Fi 802.11
FALSE
-
Front built-in possible
FALSE
-
Supporting protocol for KNX
FALSE
-
Supporting protocol for CAN
FALSE
-
Appendant operation agent (Ex ib)
FALSE
-
Supporting protocol for INTERBUS
FALSE
-
IO link master
FALSE
-
Supporting protocol for DeviceNet
FALSE
-
Suitable for safety functions
FALSE
-
Supporting protocol for Data-Highway
FALSE
-
Rack-assembly possible
FALSE
-
Supporting protocol for LON
FALSE
-
Supporting protocol for SUCONET
FALSE
-
Wall mounting/direct mounting
FALSE
-
Depth
70
-
Rail mounting possible
TRUE
-
Supporting protocol for other bus systems
FALSE
-
Voltage type of supply voltage
EV000460
-
With display
FALSE
-
With optical interface
FALSE
-
System accessory
FALSE
-
Supporting protocol for TCP/IP
TRUE
-
Supporting protocol for Modbus
TRUE
-
Redundancy
FALSE
-
Supporting protocol for IEC 61850 Ethernet
FALSE
-
Width
175
-
Number of HW-interfaces USB
1
-
Supply voltage AC 50 Hz
100
-
Supply voltage AC 60 Hz
100
-
Supporting protocol for IEC 60870
FALSE
-
Supporting protocol for DNP3
FALSE
-
Additional program memory possible
TRUE
-
Model
EV002153
-
Long-Term Evolution (LTE)
FALSE
-
Number of digital outputs
16
-
Processing time (1K, binary operation)
0.3
-
Type of memory
EV009243
-
Memory size
0.512
-
Number of digital inputs
40
-
Number of analogue inputs
-
Number of analogue outputs
-
Number of HW-interfaces parallel
-
Number of interfaces PROFINET
-
Number of HW-interfaces Wireless
-
Number of HW-interfaces RS-422
-
Number of HW-interfaces RS-485
-
Number of HW-interfaces industrial Ethernet
-
Number of HW-interfaces RS-232
-
Number of HW-interfaces other
This product is part of the Easy modicon M200 range, an offer of logic controllers for up to 196 I/O, 2 axis motion control. It is a logic controller with 16 regular inputs, 4 fast inputs, 4 high speed inputs, 16 relay outputs. Its supply voltage is 100VAC to 240VAC, it embeds 1 serial link port (RS 485), 1 Ethernet port (type RJ45), and a USB port dedicated to programming. This controller is suitable at an affordable price, without compromising on simplicity, robustness, availability and services. It embeds a PID process control, PTO, PWM and PLS position control. Its voltage limit (ripple included) is 85VAC to 264VAC (50/60Hz) and maximum consumption stands between 61VAC and 74VAC. It measures 175mm wide x 70mm deep x 90mm high and it weighs 0.512kg. It is designed for applications such as textile, machine tools, packaging, HVAC, material handling, pumping, hoisting, and electronic assembly. This product is certified by CE, CSA, IACS E10, RCM and CULus and meets EN/IEC 61010-2-201 and EN/IEC 61131-2 standards. This controller is compatible with optional cartridges which offer digital I/O and analog I/O expansions, and Serial Link communication port expansions. It is sold in a 1-piece package. It supports DIN rail mount. Easy modicon M200 controllers are entry-level products perfectly suited to meet specific needs of emerging markets at an affordable price without compromise. Easy modicon M200 logic controllers, the best performance/price ratio solutions for your small automation systems requiring flexibility and simple motion.
