СКУ: TM200C16T

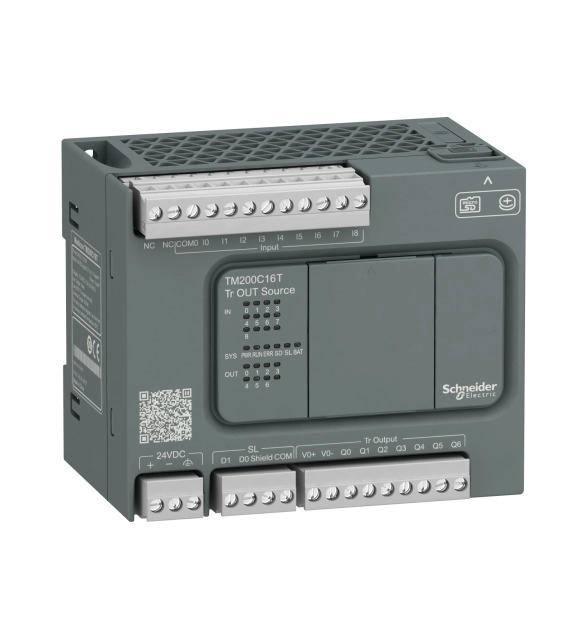

Контролер M200 16I/O източник на транзистор
-
Brand
Schneider Electric
-
Supporting protocol for SERCOS
FALSE
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Radio standard GPRS
FALSE
-
Supporting protocol for INTERBUS-Safety
FALSE
-
Supporting protocol for AS-Interface Safety at Work
FALSE
-
Radio standard GSM
FALSE
-
Explosion safety category for dust
EV000494
-
Radio standard UMTS
FALSE
-
Explosion safety category for gas
EV000494
-
Supporting protocol for DeviceNet Safety
FALSE
-
Supporting protocol for EtherNet/IP
FALSE
-
Supporting protocol for Foundation Fieldbus
FALSE
-
Supporting protocol for SafetyBUS p
FALSE
-
Supporting protocol for PROFINET CBA
FALSE
-
Supporting protocol for PROFINET IO
FALSE
-
Supporting protocol for PROFIsafe
FALSE
-
Supporting protocol for ASI
FALSE
-
Radio standard Bluetooth
FALSE
-
Supporting protocol for PROFIBUS
FALSE
-
Appendant operation agent (Ex ia)
FALSE
-
Radio standard Wi-Fi 802.11
FALSE
-
Supporting protocol for TCP/IP
FALSE
-
Front built-in possible
FALSE
-
Supporting protocol for KNX
FALSE
-
Supporting protocol for CAN
FALSE
-
Appendant operation agent (Ex ib)
FALSE
-
Supporting protocol for INTERBUS
FALSE
-
IO link master
FALSE
-
Supporting protocol for DeviceNet
FALSE
-
Suitable for safety functions
FALSE
-
Supporting protocol for Data-Highway
FALSE
-
Rack-assembly possible
FALSE
-
Supporting protocol for LON
FALSE
-
Supporting protocol for SUCONET
FALSE
-
Rail mounting possible
TRUE
-
Supporting protocol for other bus systems
FALSE
-
Voltage type of supply voltage
EV000460
-
With display
FALSE
-
With optical interface
FALSE
-
System accessory
FALSE
-
Number of HW-interfaces parallel
-
Number of interfaces PROFINET
-
Number of HW-interfaces other
-
Number of HW-interfaces Wireless
-
Supporting protocol for Modbus
TRUE
-
Number of HW-interfaces RS-422
-
Wall mounting/direct mounting
TRUE
-
Number of HW-interfaces RS-485
1
-
Number of HW-interfaces RS-232
1
-
Number of HW-interfaces industrial Ethernet
-
Number of digital outputs
-
Number of analogue inputs
2
-
Number of analogue outputs
-
Redundancy
FALSE
-
Type of memory
EV000506
-
Supporting protocol for IEC 61850 Ethernet
FALSE
-
Width
160
-
Number of HW-interfaces USB
1
-
Supporting protocol for IEC 60870
FALSE
-
Supporting protocol for DNP3
FALSE
-
Max. number of time switches
255
-
Additional program memory possible
TRUE
-
Height
103.6
-
Depth
75.9
-
Processing time (1K, binary operation)
0.2
-
Model
EV002153
-
Long-Term Evolution (LTE)
FALSE
-
Memory size
512
-
Supply voltage AC 50 Hz
85
-
Supply voltage AC 60 Hz
85
-
Number of relay outputs
16
-
Number of digital inputs
24
This product is part of the Easy modicon M200 range, an offer of logic controllers for up to 196 I/O, 2 axis motion control. It is a logic controller with 1 regular input, 4 fast inputs, 4 high speed inputs, 7 sink transistor outputs including 2 fast outputs. Its supply voltage is 24VDC , it embeds 1 serial link port (RS 485), and a USB port dedicated to programming. This controller is suitable at an affordable price, without compromising on simplicity, robustness, availability and services. It embeds a PID process control, PTO, PWM and PLS position control. Its voltage limit (ripple included) is 20.4VDC to 28.8VDC and maximum consumption is 18W. It measures 110mm wide x 70mm deep x 90mm high and it weighs 0.339kg. It is designed for applications such as textile, machine tools, packaging, HVAC, material handling, pumping, hoisting, and electronic assembly. This product is certified by CE, CSA, IACS E10, RCM and CULus, and meets EN/IEC 61010-2-201 and EN/IEC 61131-2 standards. This controller is compatible with optional cartridges which offer digital I/O and analog I/O expansions, and Serial Link communication port expansions. It is sold in a 1-piece package. It supports DIN rail mount. Easy modicon M200 controllers are entry-level products perfectly suited to meet specific needs of emerging markets at an affordable price without compromise. Easy modicon M200 logic controllers, the best performance/price ratio solutions for your small automation systems requiring flexibility and simple motion.
