СКУ: LTMR100EBD

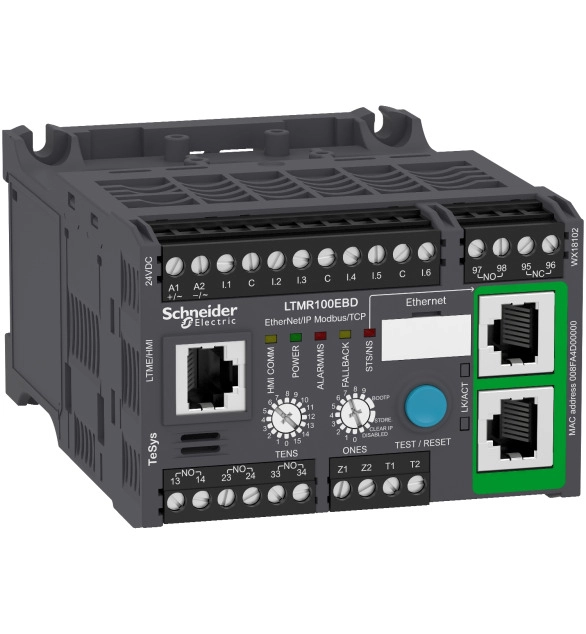

Контролер ETHERNET 5 100A 24VDC
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Voltage type for actuating
EV000461
-
Rated control supply voltage Us at DC
24
-
Type of electrical connection for auxiliary- and control current circuit
EV000415
-
Type of interface
EV000154
-
Number of outputs, with contact
5
-
Current detection module
TRUE
-
Input for analogue temperature sensor
TRUE
-
Input for earth fault detection
TRUE
-
Rated voltage Ue at DC
20.4
-
Type of connection system
EV000415
-
Voltage detection module
FALSE
-
Input for thermistor connection
TRUE
-
Rated operation current Ie
5
-
Number of analogue inputs
-
Number of analogue outputs
-
Number of electronic outputs
TeSys T is a motor management system that provides full motor monitoring, control, and protection when used with short circuit protection and a contactor. TeSys T manages most critical processes while reducing downtime and increasing productivity. TeSys T is a flexible system that integrates seamlessly into your automation system through five major communication protocols. TeSys T predicts what will happen in the process, as it accurately monitors current, voltage, and power over a wide range. This controller is the central component in the motor management system. The module manages the basic functions of the motor management system. It manages the measurement of 3 phase current via integral current transformers from 0.4 to 100 A or up to 810 A by external current transformers. It also measures ground current with internal or external ground sensors, motor temperature and the inputs and outputs for the various motor control modes, detected fault management and other functions. Ethernet/IP and Modbus/TCP protocol is used by this controller. Ethernet TCP/IP communication is used. This module has 6 discrete logic inputs, 3 relay logic outputs and a relay output for detected fault signaling overload relay. The current range of this controller is 5 to 100 amperes. 24 VDC is used to power this controller. Controller has the following certifications: UL, CSA NOM, ATEX, BV, EAC, RINA, LROS, DNV, ABS, GL, KERI, RMRoS, C-Tick and CCC.
