СКУ: LP1K12103BD3

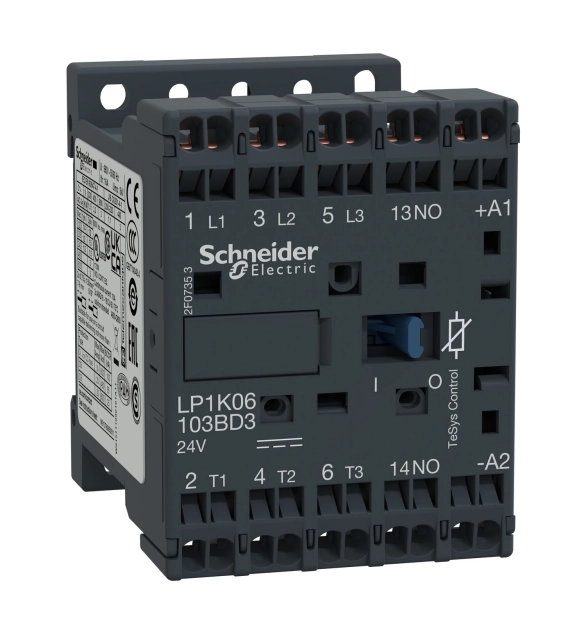

Контактор, TeSys K, 3P, AC-3/AC-3e, 440V, 12A, 1NO aux, 24V DC coil,with integral suppression device

  • Brand
    Schneider Electric
  • Max. rated operation voltage Ue
    400
  • Rated operation frequency
    50
  • Degree of protection (IP)
    EV006404
  • Number of poles, primary side
    3
  • Filtering factor
    7
  • Filter bank performance
    50
  • Rated current at AC
    72.16
  • Max. rated current (Ith) at rated voltage AC
    86

TeSys K contactor, 4 poles (2NO+2NC), for non-inductive load control applications up to 20A/690V AC-1. It provides a low consumption 24V DC coil with transient suppressor module, without built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 600 cycles/hour in AC-3 and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC).
