Автоматичен прекъсвач, ComPacT NSX630H, 70kA/415VAC, 4 полюса, MicroLogic Vigi 7.3E изключвателно устройство 570A | Spark & Co
  • 3D
|

СКУ: C63H47E570

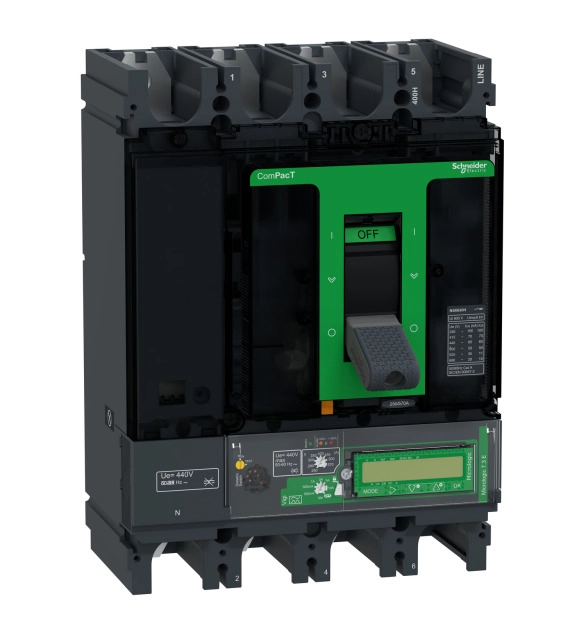

Автоматичен прекъсвач, ComPacT NSX630H, 70kA/415VAC, 4 полюса, MicroLogic Vigi 7.3E изключвателно устройство 570A

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Device construction
    EV009211
  • Motor drive integrated
    FALSE
  • Degree of protection (IP)
    EV006415
  • Number of poles
    4
  • Type of control element
    EV000421
  • DIN rail (top hat rail) mounting optional
    FALSE
  • Position of connection for main current circuit
    EV007926
  • Motor drive optional
    TRUE
  • Suitable for DIN rail (top hat rail) mounting
    FALSE
  • With switched-off indicator
    TRUE
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    70
  • With integrated under voltage release
    FALSE
  • Complete device with protection unit
    TRUE
  • Rated voltage
    440
  • Overload release current setting
    250
  • Rated permanent current Iu
    570
  • Integrated earth fault protection
    TRUE
  • Adjustment range short-term delayed short-circuit release
    375
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as normally open contact
  • Number of auxiliary contacts as change-over contact
  • Adjustment range undelayed short-circuit release
    855

This ComPacT NSX630H is a complete 4P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 70kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. This product embeds a 570A rating electronic MicroLogic 7.3 E Vigi trip unit, with an integrated adjustable earth-leakage protection. MicroLogic 7.3 E Vigi trip unit provides adjustable long time, short time and instantaneous protection. MicroLogic 7.3 E Vigi has an embedded display unit for fine settings adjustment and display of the energy (energy meter). This 4 poles version (185mm x 255mm x 110mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX630H is part of Schneider Electric EcoStruxure Power architecture.
