СКУ: LC1DT200A6EHE

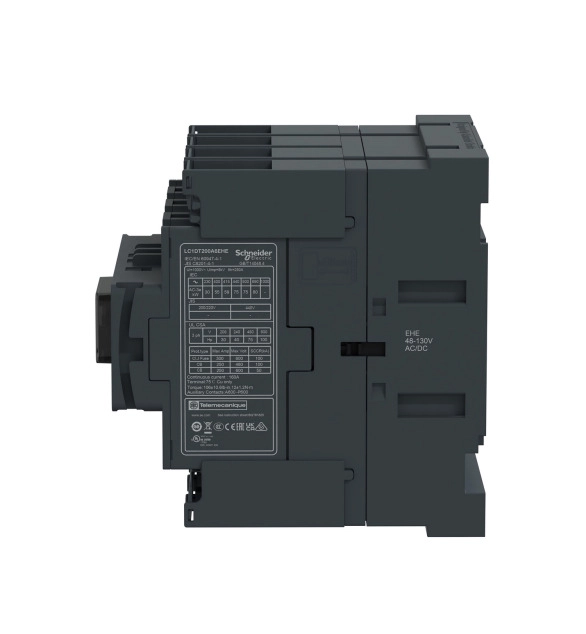

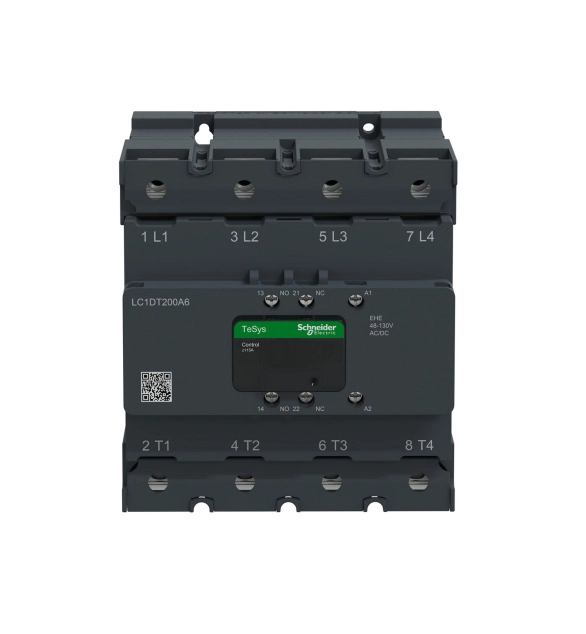

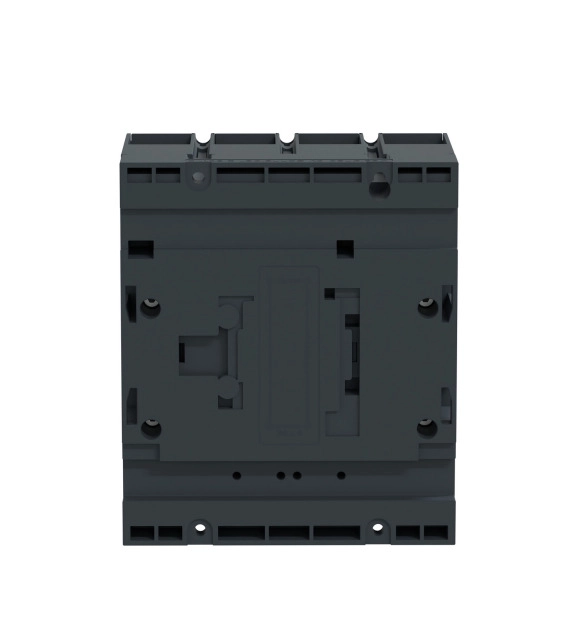

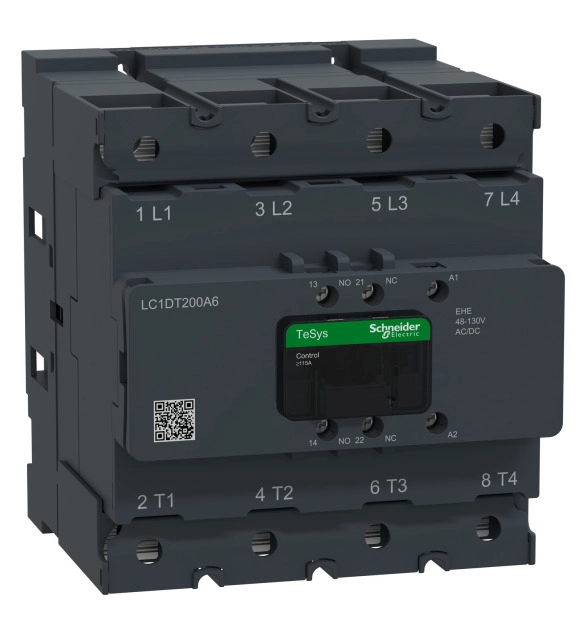

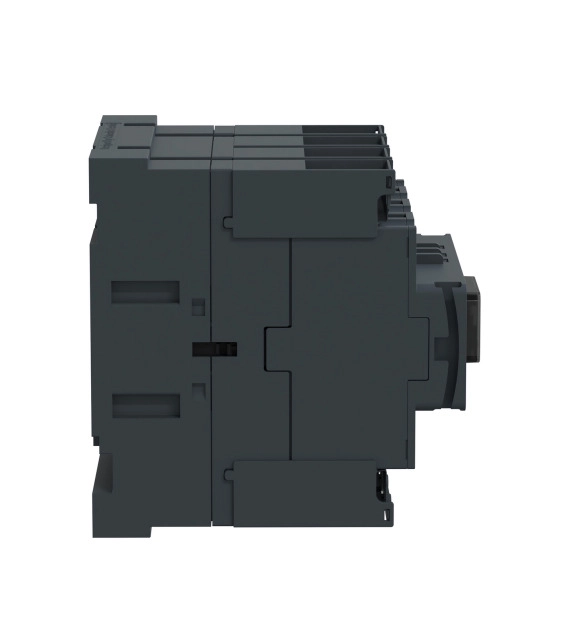

Контактор, Tesys Deca Advanced, 4P(4NO), AC-1, <=440V, 200A, 48-130V AC/DC бобина, клеми за кабелни обувки или шини
-
Brand
Schneider Electric
-
Voltage type for actuating
EV000509
-
Rated control supply voltage Us at AC 50HZ
48
-
Rated control supply voltage Us at AC 60HZ
48
-
Rated control supply voltage Us at DC
48
-
Number of auxiliary contacts as normally closed contact
1
-
Number of auxiliary contacts as normally open contact
1
-
Modular version
FALSE
-
Type of electrical connection of main circuit
EV000154
-
Number of normally open contacts as main contact
4
-
Rated operation current Ie at AC-1, 400 V
200
-
Number of normally closed contacts as main contact
TeSys Deca Advanced contactor, 3 poles (3NO) for category AC-1 applications up to 200A/440V. It is equipped with a 48-130V AC/DC wide-band electronic coil that has lower power consumption, along with integrated 1NO+1NC auxiliary contacts. It can be installed in any orientation, and LRD43 could be directly mounted below contactor. The operating temperature range is between -40°C and 70°C, and it can be installed at altitudes of up to 3000m without derating. It is designed for demanding applications with improved performance under harsh environment including salt-mist, dust and high shock. The dimension is 152mm x 134mm x 155mm (H x W x D). Compact size enables panel space savings. Simple wiring with all front access to control circuit enhances accessibility and safety. Front IP20 as well as improved main power connection robustness is achieved by EverLink. Multi standards certified (CE,CB,CCC,cULus,KC,RCM). Unique QR code provides quick access to complete product data.
