Контактор, TeSys Deca, 4P(4NO), AC-1, <=440V, 125A, 48V AC 50/60Hz coil | Spark & Co
  • 3D
|

СКУ: LC1D80004E7

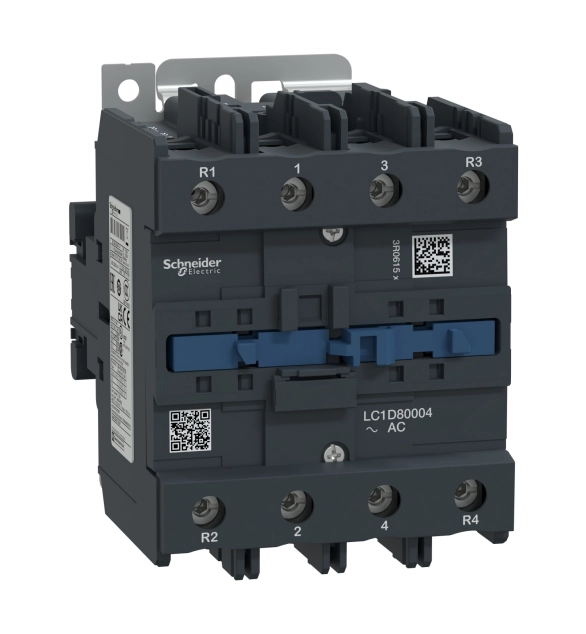

Контактор, TeSys Deca, 4P(4NO), AC-1, <=440V, 125A, 48V AC 50/60Hz coil

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Rated operation power at AC-3, 400 V
    18.5
  • Voltage type for actuating
    EV000460
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as normally open contact
    1
  • Rated control supply voltage Us at AC 50HZ
    230
  • Rated control supply voltage Us at AC 60HZ
    230
  • Modular version
    FALSE
  • Number of normally closed contacts as main contact
  • Number of normally open contacts as main contact
    3
  • Rated operation current Ie at AC-1, 400 V
    60
  • Rated operation current Ie at AC-3, 400 V
    40
  • Rated operation current Ie at AC-4, 400 V
    20
  • Rated operation power at AC-4, 400 V
    9

TeSys Deca contactor, 4P(4NO) for category AC-1 applications up to 125A @440V. It provides with 48V 50/60 Hz coil, with no auxiliary contacts, power and control connections by screw clamp terminals. It procures with 4 Mcycles mechanical durability and 0.8 Mcycles electrical durability. It provides IP20 protection on front face conforming to IEC 60529. It can cover -40°C to 60°C operation temperature and without derating under 3000m altitude. Designed for demanding applications with maximum operating rates up to 3600 cycles per hour under maximum 60°C. The dimension is 127mm x 96mm x 125mm (H x W x D), mounting on rail or plate. Multi standards certified(UL,LROS,DNV,GOST,RINA,CSA,CCC,BV,GL).
