СКУ: LC1DT253BD

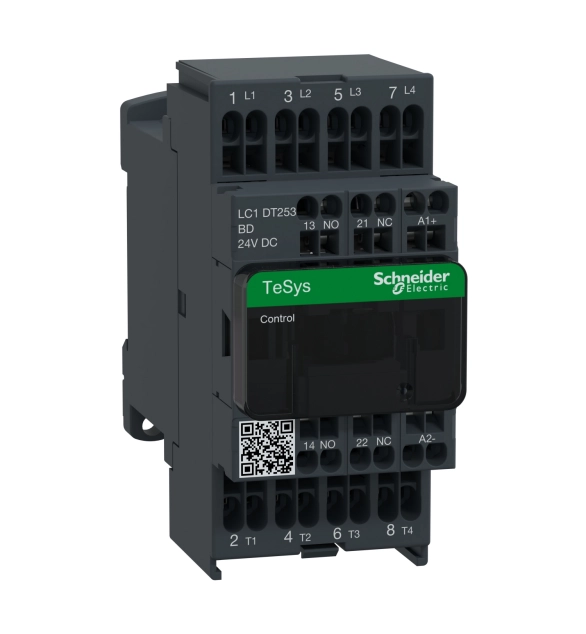

Контактор TeSys D - 4P(4 NO) -AC-1-<= 440 V 25 A - 24 V DC стандарт, бобина

  • Brand
    Schneider Electric
  • Voltage type for actuating
    EV000461
  • Rated control supply voltage Us at DC
    24
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as normally open contact
    1
  • Type of electrical connection of main circuit
    EV005752
  • Modular version
    FALSE
  • Rated operation current Ie at AC-1, 400 V
    25
  • Number of normally open contacts as main contact
    4
  • Number of normally closed contacts as main contact

TeSys Deca contactor, 4 poles (4NO), for non-inductive load applications up to 25A/690V AC-1. It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by spring terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
