СКУ: LC1D126FD

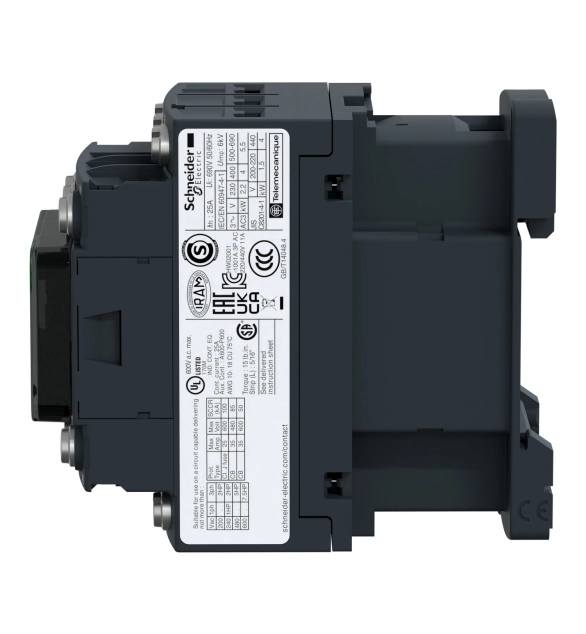

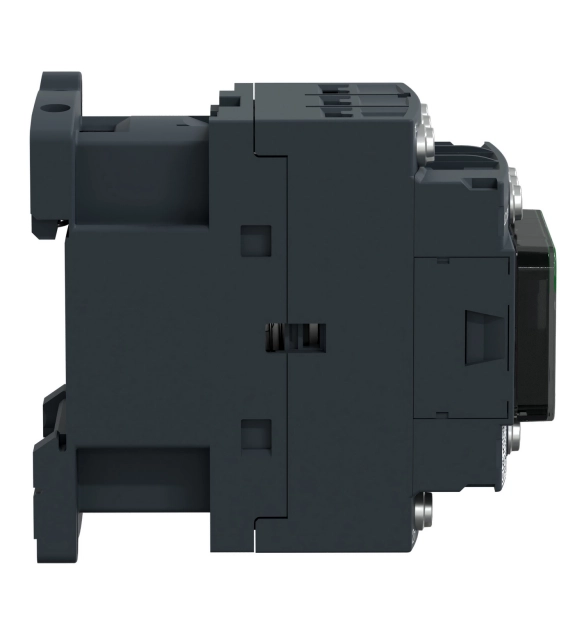

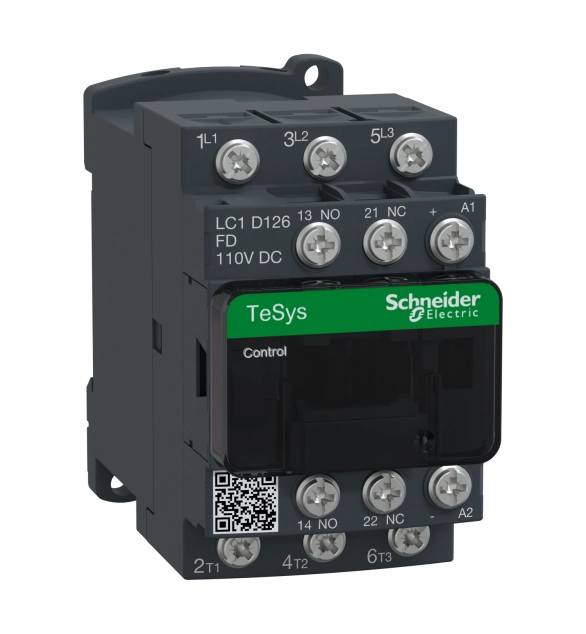

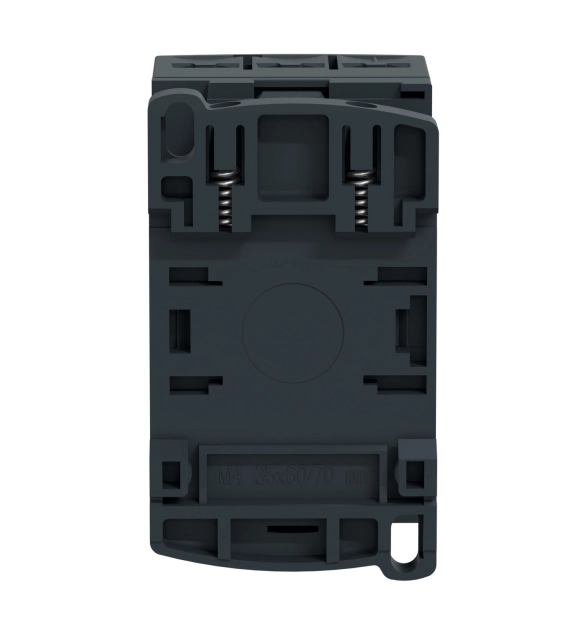

Контактор TeSys D - 3P(3 NO) - AC-3 - <= 440 V 12 A - 110 V DC, бобина
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Voltage type for actuating
EV000460
-
Number of auxiliary contacts as normally closed contact
1
-
Number of auxiliary contacts as normally open contact
1
-
Modular version
FALSE
-
Rated control supply voltage Us at AC 50HZ
120
-
Rated control supply voltage Us at AC 60HZ
120
-
Rated operation current Ie at AC-1, 400 V
25
-
Number of normally closed contacts as main contact
2
-
Number of normally open contacts as main contact
2
TeSys Deca contactor, 4 poles (2NO+2NC), for non-inductive load applications up to 25A/690V AC-1. They can be used to create motor starters for almost any type of application. It provides a 120V AC 50/60Hz coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Power contacts have a 25A resistive load rating. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.35 inches tall, 1.77 inches wide and 3.62 inches deep. It weighs 0.80 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.
