СКУ: LC1E80004M7

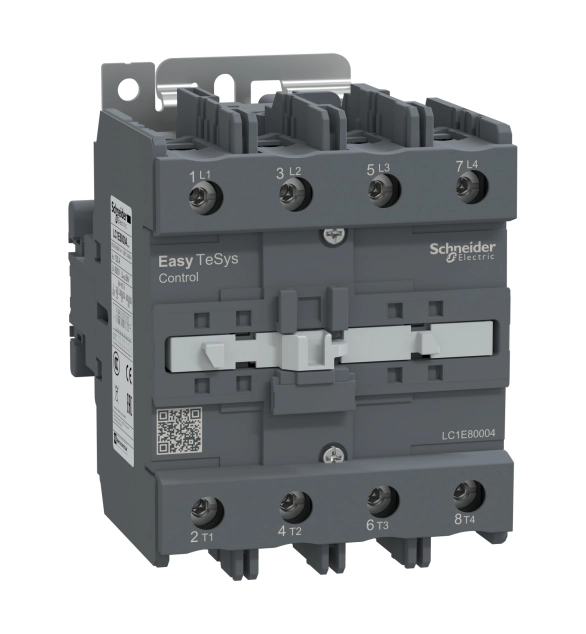

Контактор Easy TeSys Control,LC1E,4P(4NO),AC-1 100A,220V
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Voltage type for actuating
EV000460
-
Rated control supply voltage Us at AC 50HZ
220
-
Rated control supply voltage Us at AC 60HZ
220
-
Modular version
FALSE
-
Number of normally open contacts as main contact
4
-
Number of auxiliary contacts as normally closed contact
-
Number of auxiliary contacts as normally open contact
-
Number of normally closed contacts as main contact
-
Rated operation current Ie at AC-1, 400 V
100
Easy TeSys Control contactor 4 poles (4NO) for category AC-1 applications up to 100A. It provides a 220V 50/60Hz AC coil, without built-in auxiliary contacts, power and control connections by screw clamp terminals. 95mm width for standard. It provides standard reliability and durability with 0.35 Mcycles electrical durability AC-1 and 3 Mcycles mechanical durability. Operating rates up to 1200 cycles per hour. It can cover -5°C to 55°C working temperature and mounted by DIN-rail. No derating up to 3000m altitude. Available worldwide, it is multi-standards certified (CB scheme,CE,CCC,EAC) and Environmental compliant (RoHS/REACH).
