Контактор Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,18A,24V DC бобина,1 NO спомагателен контакт | Spark & Co
  • 3D
|

СКУ: LC1E1810BD

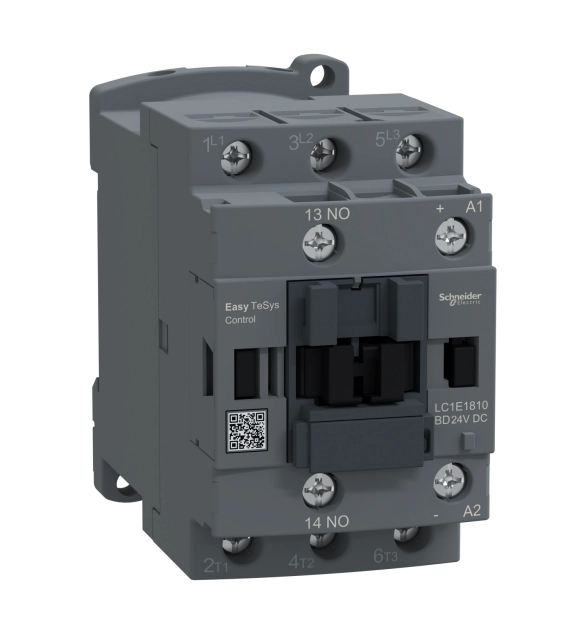

Контактор Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,18A,24V DC бобина,1 NO спомагателен контакт

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Rated operation power at AC-3, 400 V
    7.5
  • Voltage type for actuating
    EV000461
  • Rated control supply voltage Us at DC
    24
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as normally open contact
  • Modular version
    FALSE
  • Number of normally closed contacts as main contact
  • Number of normally open contacts as main contact
    3
  • Rated operation current Ie at AC-1, 400 V
    32
  • Rated operation current Ie at AC-3, 400 V
    18

Easy TeSys Control contactor 3 poles for motor applications up to 18A 9kW/440V. It provides a 24V DC coil, 1NO built-in auxiliary contacts, power and control connections by screw clamp terminals. 45mm width for standard. It provides standard reliability and durability with 1.2 Mcycles electrical durability AC-3 and 10 Mcycles mechanical durability. Operating rates up to 1800 cycles per hour. It can cover -5°C to 55°C working temperature and mounted by DIN-rail. No derating up to 3000m altitude. Available worldwide, it is multi-standards certified (CB scheme,CE,CCC,EAC) and Environmental compliant (RoHS/REACH).
