Контактор 4P CONTACTOR 80A AC-1 24VDC COIL | Spark & Co
  • 3D
|

СКУ: LP1D65004BD

Контактор 4P CONTACTOR 80A AC-1 24VDC COIL

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Voltage type for actuating
    EV000461
  • Rated control supply voltage Us at DC
    24
  • Modular version
    FALSE
  • Rated operation current Ie at AC-1, 400 V
    80
  • Number of normally open contacts as main contact
    4
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as normally open contact
  • Number of normally closed contacts as main contact

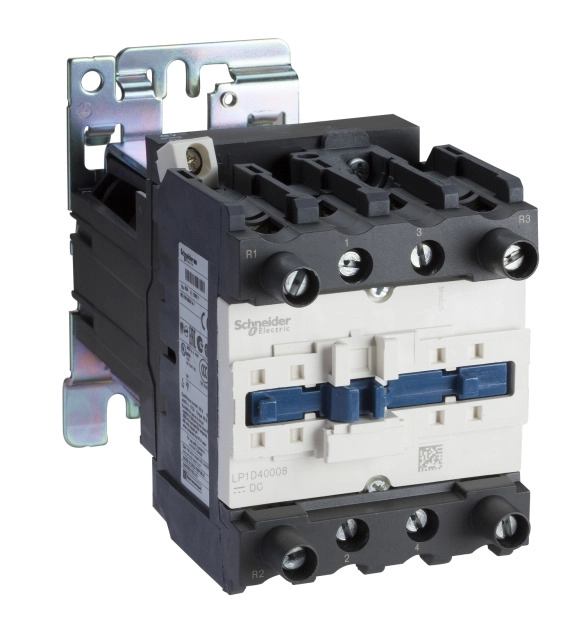

TeSys Deca contactor, 4 poles (4NO),for load control applications in category AC-1. and for non-inductive load control applications up to 80A@60℃. It provides a 24V DC coil,without built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures reliability and durability to standard applications. Very compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EN).
