СКУ: LC1D128P7

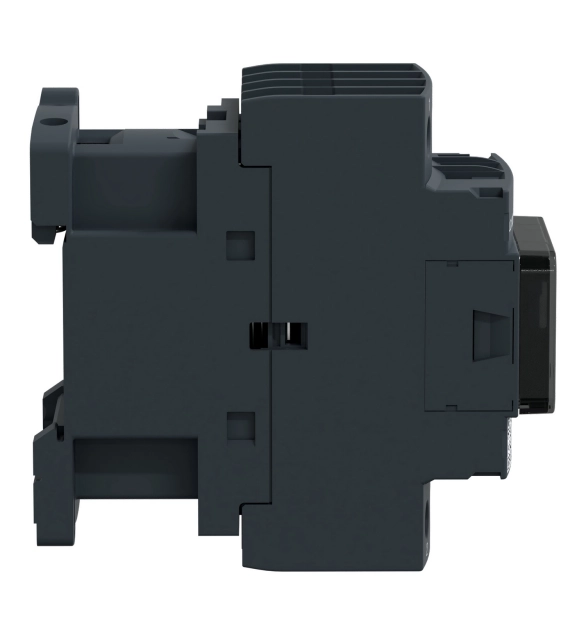

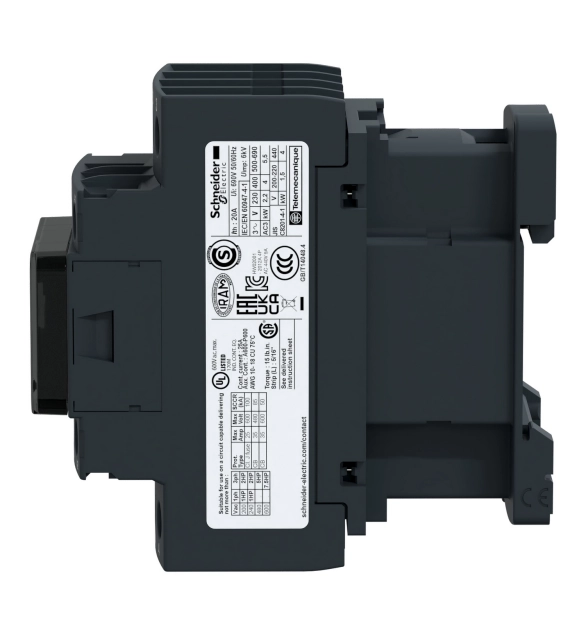

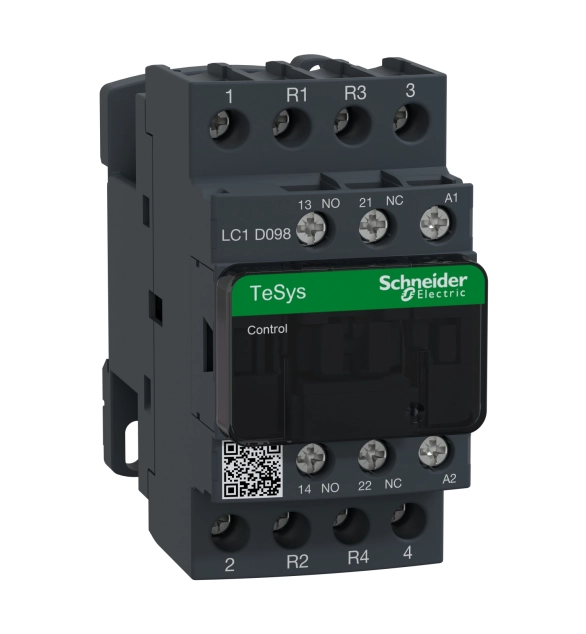

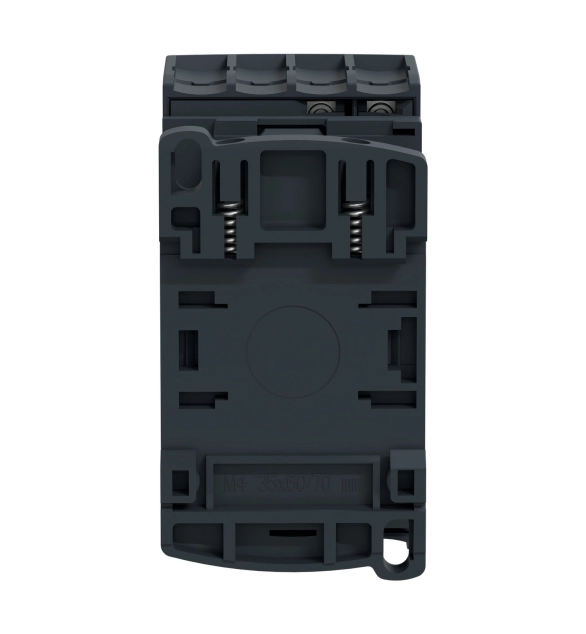

Контактор 4P 25A AC-1 (2NO 2NC) 230VAC COIL LC1D128P7
-
Brand
Schneider Electric
-
Rated operation power at AC-3, 400 V
5.5
-
Voltage type for actuating
EV000461
-
Number of auxiliary contacts as normally closed contact
1
-
Number of auxiliary contacts as normally open contact
1
-
Modular version
FALSE
-
Rated control supply voltage Us at DC
72
-
Number of normally closed contacts as main contact
-
Number of normally open contacts as main contact
3
-
Rated operation current Ie at AC-1, 400 V
25
-
Rated operation current Ie at AC-3, 400 V
12
-
Type of electrical connection of main circuit
EV000154
-
Rated operation current Ie at AC-4, 400 V
7.5
-
Rated operation power at AC-4, 400 V
3
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 12A/690V AC-3/3e (5.5kW/400V). It provides a 72V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by lugs-ring terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
